65Mn Spring NBR Shock Oil Seal With Shore A85

65Mn Spring NBR Shock Oil Seal With Shore A85
65Mn Spring NBR Shock Oil Seal With Shore A85 65Mn Spring NBR Shock Oil Seal With Shore A85 65Mn Spring NBR Shock Oil Seal With Shore A85 65Mn Spring NBR Shock Oil Seal With Shore A85

Large Image :  65Mn Spring NBR Shock Oil Seal With Shore A85

Product Details:

Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: 20*32*10/15

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Standard export package
Delivery Time: 30 working days for new samples
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs per month
Detailed Product Description
Product Name: Oil Seal Material: NBR
Tensile Strength: 14.2MPa Application: Car Or Truck
Tear Strength: 59.56 Sample Time: 10 Days
High Light:

Shore A85 shock oil seal

,

NBR shock oil seal

,

shock NBR oil seal

65Mn Spring NBR Oil Seal With Shore A85 Used In Car Shock Absorber



Specifications:

ITEM SPEC TEST METHOD RESULT
MAIN LIP ø11.1±0.30 PROJECTOR 11.052-11.088
DUSTPROOF LIP ø11.5±0.30 PROJECTOR 11.440-11.528
OD ø26+0.25/+0.15 CALIPER 26.18-26.23
HEIGHT (1) 8.5±0.20 CALIPER 8.37-8.43
HEIGHT (2) 11±0.30 CALIPER 10.83-10.94


Description:

Our company is specialized in producing shock absorber parts: oil seal, Piston, Rod Guide, base valve, piston rod, valve disc, stamping parts and other sinter parts.

Equipment Advantages:

Automatic Hydraulic Machines

Automatic Mechanical Pressers

Vacuum Furnaces

Sintering furnace

CNC tooling machine

Properties:

ITEM SPEC RESULT STANDARD
Shore A 80±5 82 GB/T531.1
Tensile strength ≥10MPa 16.92 GB/T528.2
Elongation @ break ≥125% 198
Compression deformation Max+25 20 GB/T7759
100℃ * 70 h Sample B type
air oven aging test Hardness change point 0~+10 +3 GB/T3512
Tensile strength change rate Max-20 5
Elongation @ break change rate Max-40 -10
oil resisitant 100℃ * 70 h (IRM901) Hardness change point -5~+10 +3 GB/T1690
Volumn change rate -10~+5 -3
oil resisitant 100℃ * 70 h (IRM903) Hardness change point -20~0 -12 GB/T1690
Volumn change rate 0~+35 20
Brittleness Temperature ≤-40℃ -45℃ GB/T1682
Rubber standard: HG/T2810-2008 WA8533


We can also produce different valve seat with different dimensions.

Some dimensions of compression valve seat are below:

ØD ØD1 ØD2 Ød H H1 H2 h
28 23.8 22.1 16 11 4.3 2.5 3
29.8 25.8 22.1 16 11.5 4.3 2.5 3.5
33 28.3 22.1 16 15 7.3 3 4
34 29.1 22.1 17 16 9.5 3.5 4
35 30.8 22.1 16 15 7.3 3 4


Sintered Parts
1. Professional Fe/Cu based powder metallurgy parts manufacturer

2. Process flow: Mixing--Compacting--Sintering--Re-sizing--ultra sonic cleaning--vacuum oiling--Packing

3. High precision, low noise, wear resistance, energy saving, environment protection, high efficiency and low cost.

4. High quality guarantee: electronic balance to ensure density, test equipments to ensure crushing strength, QC and PQC to ensure close tolerance and accurate dimension.

5. Design ability: Developed different models of gear, bearing, bushing, structural parts etc. can produce according to drawings or samples.

Applications:

1. Automotive Part

2. Motorcycle Part

3. Pump Parts

4. Locomotive Parts

5. Machinery Parts

6. Tool Parts

Competitive Advantage:

High quality guarantee:

(1) Electronic balance ensure density

(2) Test equipments to ensure crushing strength

(3) QC an PQC to ensure close tolerance and accurate dimension

Design ability:

Develop different models of gear, bearing, bushing, structural parts etc. can produce according to

drawings or samples.

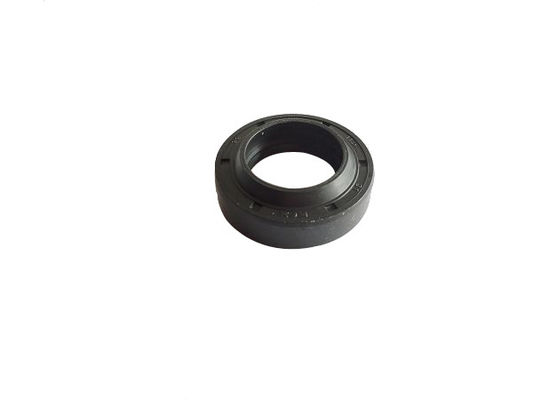

Picture show:

65Mn Spring NBR Shock Oil Seal With Shore A85 0
