PTFE Flared OD Front / Rear Shock Absorber Banded Piston For Heavy Truck

PTFE Flared OD Front / Rear Shock Absorber Banded Piston For Heavy Truck

  • PTFE Flared OD Front / Rear Shock Absorber Banded Piston For Heavy Truck
  • PTFE Flared OD Front / Rear Shock Absorber Banded Piston For Heavy Truck
  • PTFE Flared OD Front / Rear Shock Absorber Banded Piston For Heavy Truck
  • PTFE Flared OD Front / Rear Shock Absorber Banded Piston For Heavy Truck
PTFE Flared OD Front / Rear Shock Absorber Banded Piston For Heavy Truck
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: IATF16949:2016
Model Number: 32mm
Payment & Shipping Terms:
Minimum Order Quantity: 503pcs
Price: negotiation
Packaging Details: Packed in carton firstly and then reinforced with wooden case for outer packing
Delivery Time: ten working days after payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Banded Piston Density Of Banding: ≥ 2.06 G/cm3
Banding Method: Flared OD Application: Car Shock Absorber
Producting Machine: Automatic Banding Machine Outer Diameter: 32mm
Type Of Shocks: Fluid Shocks Cat Type: Truck
High Light:

shock absorber piston

,

shock absorber parts

Elongation @ break ≥ 150% Flared Banded Piston Used In Suspension From Heavy Truck





Size: 32mm or according to drawings



Material for sinter piston: FC-0208



Fillers for banding material: Carbon fiber



Design: Flared OD



Hardness for banding material: 57 HRB



Specifications:

Various testing machine

Density balance

Shore hardness

Projector

Drawing force testing machine

Fatigue testing machine

Abrasion testing machine

Tensile testing machine

Oil immersion testing machine

Friction testing machine



Description:



Pass blow-off testing filled PTFE banded Shock Absorber Piston, XIA YI makes great efforts to research



and develop the filling material for small sized and low priced shock absorber piston ring with high



performance and low cost and make these materials specific.This kind of excellent shock aBsorBer,



used in XIAYI PTFE banded piston, can give you a very smooth ride.



XiaYi company is specialized in producing shock absorber pistons from automobiles and motorcycles.



With development, we have reached annual capacity 2,000,000pcs. We have built good relationship with



some big shock absorber manufacturers at home and abroad.



SPEC: D45XD10X12



•      The pistons are exported to Japan



•      4 small holes design



•      All the holes are inclined



•      Net weight is 45.73g



•      Pistons can do performance test according to the customer's demand.





Here is the physical property of our products:



Tensile strength       ≥23N/mm2



Carrying capacity    ≥15N/mm3



Working temperature    -80°C to 260°C



Friction coefficient  ≤0.16μ



We have different kinds of testing machines such as abrasion test, density test, friction test, blow-off test,



hardness test, tension strength test and so on. So you can highly trust our advanced material.



As a modern company orientated towards organic growth it is in our interest that there is a team-spirit,



that everyone is reliable and that we are all following the same targets. Our highly motivated and



competent team can be depended upon to pursue the utmost aim of the company which is "customer



satisfaction" at a consistently high quality.



Applications:



Front of rear shock absorbers from heavy trucks



Competitive Advantage:



XIAYI is a professional company which produces different size and design shock absorber pistons.



XIAYI has a complete set of testing equipment which can control the quality for the material.

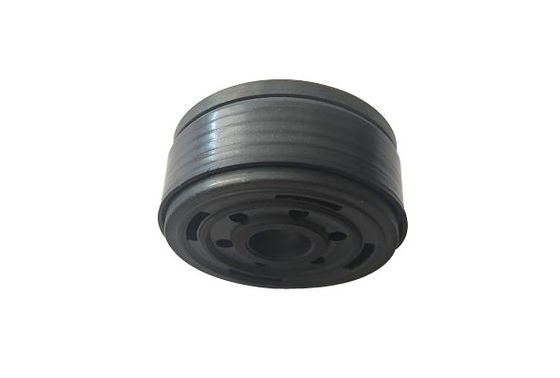

Picture show:

PTFE Flared OD Front / Rear Shock Absorber Banded Piston For Heavy Truck 0

PTFE Flared OD Front / Rear Shock Absorber Banded Piston For Heavy Truck 1
