| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | Φ30.05mm |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | USD0.28 |
| Packaging Details: | Packed in carton and then reinforced with wooden case for outer packing |
| Delivery Time: | 15 days after payment |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50,000pcs per month |
| Product Name: | Shock Piston | Density Of Sinter Piston: | More Than 6.4g/cm3 |
|---|---|---|---|
| Material Of Bands: | PTFE And Filllers | Density Of Bands: | 2.20g/cm3 |
| Application: | Front Shock Absorber | Hardness For Sinter Piston: | 70-90 |
| High Light: | banded piston,damper piston |
||
PTFE Banded Shock Absorber Piston Density 2.20 With Good Tensile Strength
| TEST | METHOD | RESULT |
| TENSILE STRENGTH | ASTM 4894 | 20 N/mm2 |
| ELONGATION AT BREAK | ASTM 4894 | 300% |
| DENSITY | ASTM 4894 | 2.23±0.03gr/cm3 |
| SHORE D HARDNESS | ASTM 4894 | 57±3 |
Fluid attack:
A diameter and hardness control is carried out on the band, placed on the piston. Once the PTFE process has been carried out and before 24 hours have elapsed, it is immersed in the fluid for 72 hours at 80 ℃
Acceptance Conditions:
There can be no breakage or detachment of material. The variation of hardness ≤6%, the diameter variation ≤0.20%
Specifications:
100% tested by Go no-Go gauge
Coaxiality can be control within 0.05mm
2 round holes and 6 quare holes
conventional shock piston
net weight is 25.29g
we can do drawing load test for banded piston without band slippage after test.
Description:
OD 30.05 mm
Manufacturability of powder metal parts:
Auto Mechanical Press: 50T, 100T, 140T...
Hydraulic Press: 100T, 315T, 600T, 800T
Six sinter furnaces, including one harden Sinter Furnace
Heat treatment: carbonitriding quenching and high frequency quenching
Ultrasonic clearing and auto de-burring
In-house tooling making: EDM, wire cutting machine
Durability testing:
| Stroke | 50mm |
| Speed | 1m/s |
| Side load | 30kgf |
| Temperature | 80℃+/-10℃ |
| Duration 3 million cycles | |
No band peel off or breakage after test
|
Test Ability |
Carbon sulfur determinator |
| Metallurgic microscope | |
| Hydraulic universal material tester | |
| Hardness testers | |
| Pneumatic measuring instrument | |
| Measuring projector | |
| Electrical profilometer | |
| CMM |
Strong R&D team
Responsible staffs
Clean workshop
We will bring you pistons with good quality and competitive price.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
XIAYI can produce bands rings to low down the cost and control the quality at home, at the same time we
can design and produce automatic banding machine and non-standard testing machine, can test drawing
force testing and oil immersion testing.

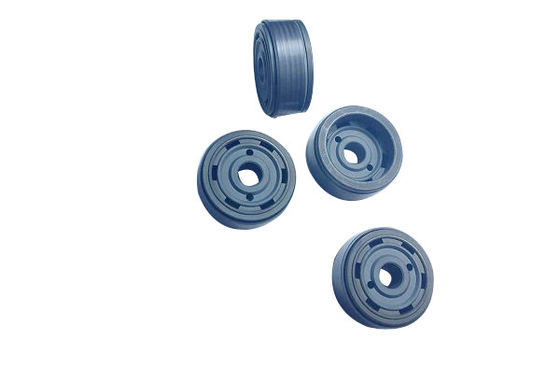

Picture show:
