| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Customized PTFE DISC |
| Minimum Order Quantity: | 1,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in plastic bag, then in carton with standard export package |
| Delivery Time: | one week for new samples |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50,000pcs per day |
| Product Name: | PTFE DISC | Material: | Filled PTFE |
|---|---|---|---|
| Production Machine: | Automatic Pressing | Application: | Shock Absorber |
| Density: | 2.17g/cm3 | Hardness: | 57-61 |
| Elongation @ Break: | 300% | Size: | D37.5XD17X0.60 |
| High Light: | teflon ring seal,teflon backup rings |
||

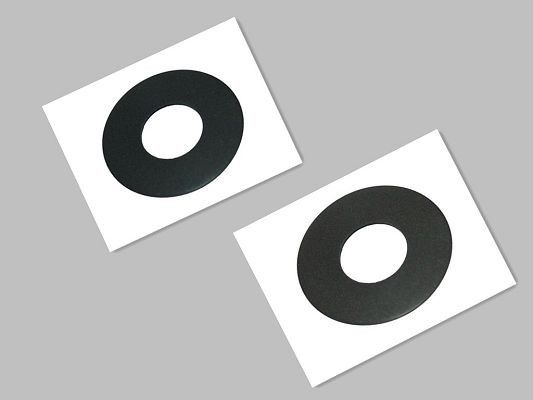

Tensile strength 15MPa carbon fiber filled PTFE ring with thickness 0.60mm
Specifications:
|
properties |
unit |
result |
|
Apparent density |
g/cm3 |
2.10-2.30 |
|
Tensile strength(min) |
MPa |
15.0 |
|
Ultimate elongation(min) |
% |
150 |
|
Working Temp. |
℃ |
-180~260 |
|
Melting point |
℃ |
327 |
|
Produce Max Temp. |
℃ |
385 |
|
Size |
mm |
20mm~400mm |
Description:
Mechanical properties: carbon fiber filled PTFE ring increases the hardness of PTFE and reduce cold
flow or creep. Tensile strength and elongation usually are reduced depending on the filler type and
percentage.
Thermal properties: carbon fiber filled PTFE ring increases thermal conductivity and also reduce liner
coefficient of thermal expansion then increase thermal dimensional stability.
Type of filler Graphite:
1. Extremely low coefficient of friction
2. Chemically inert
3. Usually incorporated with other fillers such as glass or carbon
4. Increases wear resistance especially against soft metal
Inorganic filler: carbon fiber, Bronze, Glass fiber, etc
This carbon fiber filled PTFE rings are widely utilized into oil free air compressors. Most of rings are made
of self-lubricating materials such as virgin PTFE and filled PTFE compounds like carbon filled PTFE and
graphite filled PTFE, etc. All above grades are available
Type: Piston ring, straight cut piston ring, diagonal piston ring, stepped cut piston ring, two piece piston
ring, etc.
Chemical properties
Carbon fiber filled PTFE ring: it can resistant to almost all of the hydraulic medium, solvents, and various
chemical mediators, has a very low coefficient of friction, no creeping phenomenon. Ozone resistance,
weather resistance is excellent
Application data:
|
inspection item |
Unit |
Data |
|
Bulk density |
g/cm3 |
1.90(±0.10)-for sheet; 2.30(±0.20) for PTFE seal |
|
Pressure Limit |
Bar |
40 |
|
Temperature Limit |
|
260 |
|
PH Range |
|
0-14 |
|
PTFE Seal thickness |
MM |
0.5(±0.10)/side |
|
Gasket Thickness |
MM |
2(±0.10) or as customers' request |
Applications:
1. Automotive Part
2. Motorcycle Part
3. Industrial parts
Competitive Advantage:
1. Good quality: We have strict quality control system. Good reputation in the market
2. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008
3. Fast and cheap delivery: We have big discount from forwarder(Long Contract)
4. Can produce according to customers’ drawings
