| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Customized PTFE ring |
| Minimum Order Quantity: | 1,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in plastic bag, then in carton with standard export package |
| Delivery Time: | one week for new samples |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50,000pcs per day |
| Product Name: | PTFE Ring | Material: | Filled PTFE |
|---|---|---|---|
| Production Machine: | Automatic Pressing | Application: | Shock Absorber |
| Density: | 2.17g/cm3 | Hardness: | 57-61 |
| Elongation @ Break: | 300% | OD: | 39mm |
| High Light: | ptfe piston rings,teflon ring seal |
||

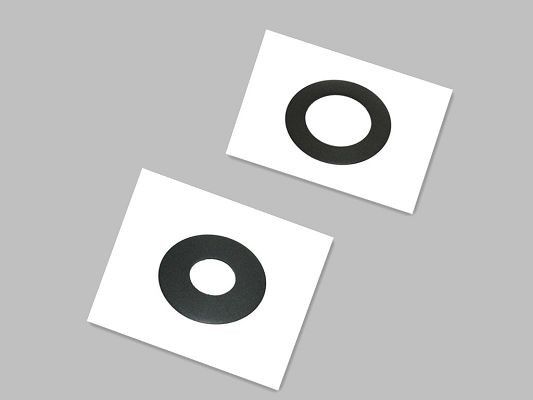

Sintering temperature 375 PTFE ring cutting from tubes by precision CNC machine
Specifications:
|
properties |
unit |
result |
|
Apparent density |
g/cm3 |
2.10-2.30 |
|
Tensile strength(min) |
MPa |
15.0 |
|
Ultimate elongation(min) |
% |
150 |
|
Working Temp. |
℃ |
-180~260 |
|
Melting point |
℃ |
327 |
|
Produce Max Temp. |
℃ |
385 |
|
Size |
mm |
20mm~400mm |
Description:
PTFE piston ring
1. Material: PTFE
2. Any sizes and colors
3. Any colors and sizes
4. Payment: T/T
First-class Piston Guide Rings, excellent-function Piston Guide Rings, long-life Piston Guide Rings,
trusted Piston Guide Ring.
Most common guide ring for rod or piston application's in many standard cylinders, majority of
applications require split version for installation in to close housings, non split design available
(bushings).
Guide ring for rod or piston application, split and non split design available. not only used as guide ring,
also as plain washer or spacer.
Advantages:
1 Excellent performance of sliding, no crawling effect
2 Good dynamic and static sealing
3 High abrasion, long service life
4 Wide using temperature range, high chemical stability
5 Simple and convenient installation
|
Item |
Properties |
Filled Powder |
|
1 |
improve the resistance of cold flow and the creep properties |
graphite, fiberglass |
|
2 |
improve the lubricity |
MoS2 |
|
3 |
improve the heat conduction performance |
bronze, carbon fiber |
|
4 |
improve the wear resistance |
fiberglass, poly benzoate |
|
5 |
improve the stability and reduce the deformation |
carbon fiber |
Applications:
1. Automotive Part
2. Motorcycle Part
3. Industrial parts
Competitive Advantage:
1. Good quality: We have strict quality control system. Good reputation in the market
2. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008
3. Fast and cheap delivery: We have big discount from forwarder(Long Contract)
4. Can produce according to customers’ drawings
