Low carbon steel plate based self lubricating bearing with compound of PTFE layer

Low carbon steel plate based self lubricating bearing with compound of PTFE layer

  • Low carbon steel plate based self lubricating bearing with compound of PTFE layer
  • Low carbon steel plate based self lubricating bearing with compound of PTFE layer
  • Low carbon steel plate based self lubricating bearing with compound of PTFE layer
Low carbon steel plate based self lubricating bearing with compound of PTFE layer
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: SF-1D
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: Print mark logo, Anti-rust oil, Plastic films Plastic bag or paper box, Carton + Pallet
Delivery Time: Normally 10 days, according to the quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Features: Good Wear Product Name: Bushing
Inner Layer: PTFE Material Of Bands: Bronze Steel
Shape: Cylinder, Thrust Pad Application: Heavy Vehicle
Type: Sleeve, Flange Coating: Spray PTFE
High Light:

oilless bushing

,

sintered bronze bush





Low carbon steel plate based self-lubricating bearing with compound of PTFE layer





Specifications:



1. DU bushing Bearing



2. Full range of size and customized



3. High quality OEM manufacturer with much experience







DU Bushing SF-1D

oilless sliding bearing

wrapped by steel backing

sinter bronze inter layer, PTFE anti-wear surface





Description:



Sleeve Bushing with PTFE



Specifications



Non - oil lubrication or less lubrication.



Low maintenance, with better abrasion resistance,



Low friction index and anti-aging.



Materials



1. PTFE with mixture 0.01~0.03mm



2. Porous bronze 0.2~0.3mm



3. Steel backing 0.7~2.3mm



4. Tin-plating 0.005mm or copper plating 0.008mm



Features:



1. No pre-lubrication required



2. Able to working under extreme high/low temperature with low speed



3. Working temperature range: -100℃~+300℃



Self Lubricating Bushing is wrapped by steel backing, Sinter bronze inter layer and PTFE anti-wear



surface. It is wildly used in hydraulic gear pumps, oil cylinder, oil Damping bushes and piston rings for



automobiles and motorcycles and textile, food-stuff machines etc



Application Feature:



1). Working under oilless or minim oil state, maintenance free or just need a litter maintenance



2). Resist Abrasion, low coefficient of friction long operation life.



3). Operation in -195°C~+280°C. 4).Good mending, low-noise, non-pollution.



4).Thin-walled structure, light in weight, which can reduce the machine to small size.



5). Forming a transferred film during operation to protect, safe and trouble free.



6). Low demand to the shape even no surface hardness treatment, which lower the cost of the mating



components.



7).No absorption to water/oil, small coefficient of thermal emption, good thermal conductivity and size



stability



8).The back of the steel strip can be plated with various metals, anti-corrosion



Maintenance



It is a bushing with PTFE sliding layer. Lubrication is therefore not necessary, but basically possible.





Applications:



Automotive:



McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches,



gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.



Industrial:



Aerospace, agricultural equipment, construction equipment, material handling equipment, forming



machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging



equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and railways, textile



machinery, valves, etc.





Product Advantage:





SF-1D bushing

Good interchange ability, easy installation

Under heavy load, friction coefficient small, maintain the accuracy of long-term unchanged

Easy to get a higher velocity







Picture Show

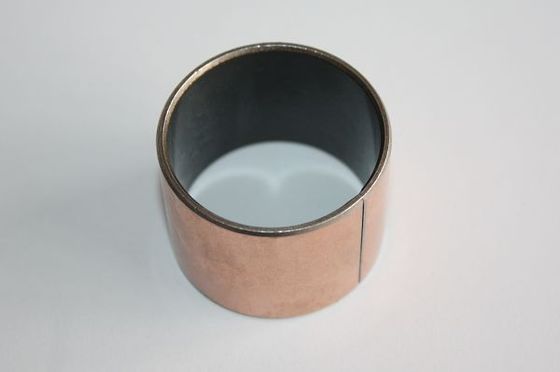

Low carbon steel plate based self lubricating bearing with compound of PTFE layer 0



Low carbon steel plate based self lubricating bearing with compound of PTFE layer 1
