30mm shock absorber components Piston High temp resist and no oil leak

30mm shock absorber components Piston High temp resist and no oil leak

  • 30mm shock absorber components Piston High temp resist and no oil leak
  • 30mm shock absorber components Piston High temp resist and no oil leak
  • 30mm shock absorber components Piston High temp resist and no oil leak
  • 30mm shock absorber components Piston High temp resist and no oil leak
30mm shock absorber components Piston High temp resist and no oil leak
Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: Xiayi
Certification: IATF16949
Model Number: piston
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: discuss
Packaging Details: standard exporting package
Delivery Time: 20-25days
Payment Terms: L/C T/T
Supply Ability: 500,000 pcs per month
Contact Now
Detailed Product Description
Part Name: Banded Piston Sinter Material: Iron Based
Banding Material: Filled Ptfe Hardness: 57-61
Density: 2.17 Application: Shock Absorber
High Light:

CNC Machining Parts

,

Aluminum parts

30mm shock absorber components Piston High temp resist and no oil leak



Specifications:

Physical performance for shock piston tensile strength More than 15MPa
elongation @ break More than 200%
shore hardness (bands) 57 - 61
density 2.15 – 2.19 g/cm3
wear Less than 50mg
friction coefficient Less than 0.3
hardness (sinter piston) HRB65-85
Different fillers carbon fiber
glass fiber
graphite
Molybdenum disulfide
carbon



Description:



High temperature resistance, no oil leak, 4 square grooves design auto Shock Pistons



D46mm Sintered Parts for shock piston



Our company produces different kinds of sintered parts. These sintered part include pistons, foot valve,



rod guider, valve base and so on.



Can band PTFE on outer diameter of pistons



Can do slide resistance test according to the customer's demand



Piston should slide down uniformity both in positive and contrary direction, no Damping stagnation



Test velocity is 3mm/min, Static strength damage: 11.27KN



Radial crushing strength>5000N



Net weight is 58.16g



Properties of sintered parts



Material: MPIF FC-0205



Density: Not less than 6.8g/cm3



Hardness: 60-100 HB



Steam treatment: 2H high temp steam holding time



Thickness of Fe3O4: 0.004-0.005mm



Die tooling design and making in house



Ultrasonic clearing and auto de-burring





Material Available and Chemical Composition:



P/M Copper and Copper Alloys



P/M Iron and Carbon Steel



Iron and Carbon Steel



Iron-Copper and Copper Steel



Iron-Nickel and Nickel Steel



Low Alloy Steel



Commix Low Alloy Steel



Sinter Hardened Steel



Diffusion Alloyed Steel



Copper Infiltrated Iron and steel



The sintered part has the following major advantages:



(A) High precision due to mold- Based production.



(B) Low price due to its inherent feature of automation for mass production



(C) Flexibility of material composition due to wide variety of powder formula on Fe- Cu- Ni alloy



Materials of PTFE disc:



1. PTFE+BRONZE



2. PTFE+CARBON FIBER



3. PTFE+GLASS FIBER



4. OTHER FILLERS or other material according to customer’s demand



Applications:



In car or motorbike front or rear shock absorbers



Competitive Advantage:



1. Consistency in size.



2. Infrared ray detect the out diameter in automatic banding machines



3. Produce PTFE disc by Xia Yi, can control the quality itself.

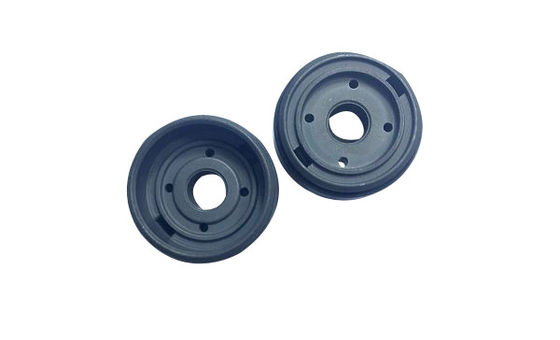

Picture show:

30mm shock absorber components Piston High temp resist and no oil leak 0
