Good Wear and corrosion resistance Banded Piston with PTFE banding material

Good Wear and corrosion resistance Banded Piston with PTFE banding material

  • Good Wear and corrosion resistance Banded Piston with PTFE banding material
  • Good Wear and corrosion resistance Banded Piston with PTFE banding material
  • Good Wear and corrosion resistance Banded Piston with PTFE banding material
  • Good Wear and corrosion resistance Banded Piston with PTFE banding material
Good Wear and corrosion resistance Banded Piston with PTFE banding material
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: piston
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Carton, wooden box or according to customer’s requirements
Delivery Time: 10 working days for new samples
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: Piston Application: Shock Absorber
Material: PTFE Plus Filler Color: Black
Type: Sinter Parts Feature: Good Seal
High Light:

PTFE rings

,

PTFE components

Good Wear and corrosion resistance Banded Piston with PTFE banding material





Specifications:

Physical performance for shock piston tensile strength More than 18MPa
elongation @ break More than 160%
shore hardness (bands) 57 - 61
density 2.06 – 2.19 g/cm3
wear Less than 50mg
friction coefficient Less than 0.2
hardness (sinter piston) HRB60-80
Technical requirements for sinter piston Raw material F50 - U3 - 66 or FC - 0208
Steam treatment
OD tested by digital air gauge



Description:



Wear and corrosion resistance HYUNDAI, NISSAN, KIA, FORD Shock absorber Pistons with PTFE



banding material



XiaYi is specializing in producing damper pistons. Our products are not only selling well in many cities in



China, but also exported to many overseas countries and regions, such as Africa, South America,



Southeast Asia and the Middle East.



Our enterprise is trying our best to provide higher quality products at lower price, and bring you



satisfactory customer service. We always optimize our products to meet different requirements of



customers. We also provide OEM services. We do business in good faith and enjoy a good reputation for



our good after-sales service.



SPEC: D25XD8X13



• 6 holes design



• The pistons are sold to primary market



• Can do slide resistance test according to the customer's demand



• Piston should slide down uniformity both in positive and contrary direction, no damping stagnation



• Test velocity is 3mm/min, Static strength damage: 11.27KN



• Net weight is 19.60g



PTFE material has the following characteristic



(1)Physical properties: smooth surface, waxy, ivory and opacity, average density is 2.2



(2)Mechanical properties: tensile strength is 20.0~30.0MPa, elongation at break is 300%~400%, modulus



of elasticity is 400 MPA, surface hardness is 55-70HS, friction coefficient between PTFE is 0.1-0.2



(3)Chemical properties: can resist most strong corrosive material, no solvent can’t dissolve, it under



300℃, strong weather ability, can store more than ten years



Advantages:



1. Wear and corrosion resistance



2. Efficiency steaming treatment



3. Reduces friction and ensure smooth rod reaction



4. PTFE banded piston



5. It is equipped with piston rings to provide a good seal between the cylinder wall and piston



6. Increased seal durability



Applications:



Car or motorbike shock absorbers



Competitive Advantage:



XIAYI is a professional company which produces different size and design for shock absorber pistons.



XIAYI has a complete set of testing equipment which can control the quality for the material.

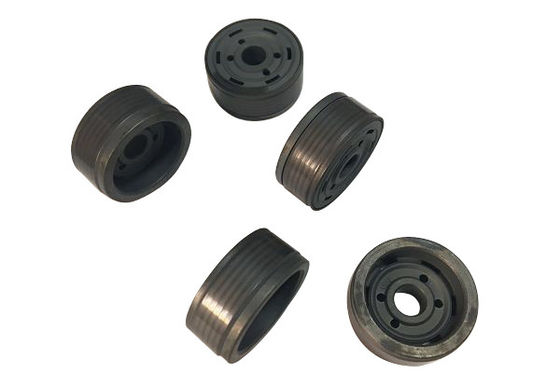

Picture show:

Good Wear and corrosion resistance Banded Piston with PTFE banding material 0
