| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Customized guide ring |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed by film firstly then by carton or wooden case |
| Delivery Time: | Within 7--15 days after get deposit or depends on quantity |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100,000pcs per month |
| Product Name: | Plastic Spare Part | Application: | Shock Absorber |
|---|---|---|---|
| Material: | PTFE Plus Filler | Temperature: | -180-+260℃ |
| Water Absorption: | <0.05% | Apparent Density: | 2.10-2.20g/cm3 |
| Standard: | ASME,ASNI,DIN,BS,HG | Ultimate Elongation: | 150% |
| High Light: | PTFE rings,PTFE components |
||
Tensile strength 15MPa oil guide ring with fillers can work in high temperature condition
Specifications:
1. High stability and form stability
2. Excellent handling even in adverse installation conditions, easy removal
3. High permissible gasket stress
4. Blow out safe, extrusion safe
Description:
PTFE Gasket Ring
Size: As customer's demand
Material: PTFE resin
Function: Good quality
Certificate: ISO9001 & TS16949
Packaging Detail: Poly bag + wooden cases or as customer demand
Delivery Detail: 2 weeks
Property of PTFE
Of all the known plastics, PTFE has some remarkable properties: it will not attacked by corrosive acids,
even if they were hot; it did not dissolve in solvents; it could be cooled to -180°C without becoming brittle
and it could be heated to 260°C without impairing its performance. PTFE materials also are extremely
stable and nonflammable; clean, dry, non-oily and non-staining. The material is biologically inert and does
not support biological growth (that is, it is non-pyrogenic). PTFE offer an extremely low static coefficient of
friction, which stems from the extremely low intermolecular forces in the PTFE molecule itself.
Apparent Density: 2.1 ~ 2.3 g/cm3
Tensile Strength: ≥ 14.0 MPa
Ultimate Elongation: ≥ 140%
Temperature: -20° F to 500° F (-180°C to 260°C)
Applications:
It is applicable to various sealing gasket, sealing plug or sealing seat in valves, air conditioner,
refrigerator and automotive parts as well as other apparatus with high precision requirement.
Features
1. Highly durable
2. Abrasion resisting
3. Resistance against corrosion
4. Low maintenance cost
5. Dimensional accuracy
6. Easy to install
Competitive Advantage:
1, 100% guarantee: Providing with your exact specs. If didn't meet a burrs/tolerance/smoothness, we will
replace all the products or issue you a credit.
2, Flexible Order: We handle both short run and large production run; as small as 50 pieces to as large
as 1000000 pieces (Normal Material only).
3, Delivery on Time: Multiple facilities, strong Engineering team, over 80 staffs, Ensure Supply.

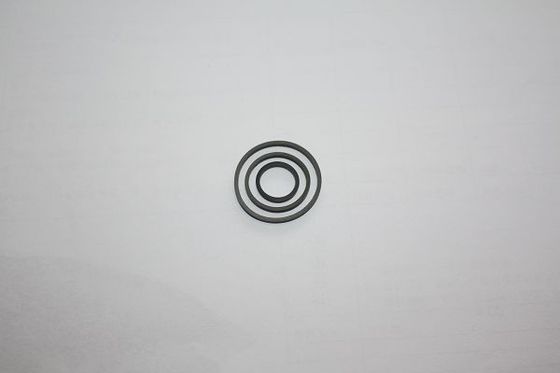

Picture Show
