Carbon fiber filled PTFE baffle ring with low coefficient of friction

Carbon fiber filled PTFE baffle ring with low coefficient of friction





Specifications:

Mechanical properties	Carbon fiber filled PTFE ring increases the hardness of PTFE and reduce cold flow or creep. Tensile strength and elongation usually are reduced depending on the filler type and percentage.
Thermal properties	Carbon fiber filled PTFE ring increases thermal conductivity and also reduce liner coefficient of thermal expansion then increase thermal dimensional stability.



Description:



PTFE piston ring



First-class Piston Guide Rings, excellent-function Piston Guide Rings,long-life Piston Guide Rings, trusted



Piston Guide Ring.



Most common guide ring for rod or piston application's in many standard cylinders, majority of



applications require split version for installation into closed housings, non split design available



(bushings).



Guide ring for rod or piston application, split and non split design available. not only used as guide ring,



also as plain washer or spacer.



Advantages:



1 Excellent performance of sliding, no crawling effect



2 Good dynamic and static sealing



3 High abrasion, long service life



4 Wide using temperature range, high chemical stability



5 Simple and convenient installation



PTFE Gasket Ring



Size: As customer's demand



Material: PTFE resin



Function: Good quality



Certificate: ISO9001 & TS16949



Of all the known plastics, PTFE has some remarkable properties: it will not attacked by corrosive acids,



even if they were hot; it did not dissolve in solvents; it could be cooled to -180°C without becoming brittle



and it could be heated to 260°C without impairing its performance. PTFE materials also are extremely



stable and nonflammable; clean, dry, non-oily and non-staining. The material is biologically inert and does



not support biological growth (that is, it is non-pyrogenic). PTFE offer an extremely low static coefficient of



friction, which stems from the extremely low intermolecular forces in the PTFE molecule itself.



Apparent Density: 2.1 ~ 2.3 g/cm3



Tensile Strength: ≥ 14.0 MPa



Ultimate Elongation: ≥ 140%



Temperature: -20° F to 500° F (-180°C to 260°C)



Item	Properties	Filled Powder
1	improve the resistance of cold flow and the creep properties	graphite, fiberglass
2	improve the lubricity	MoS2
3	improve the heat conduction performance	bronze, carbon fiber
4	improve the wear resistance	fiberglass, polybenzoate
5	improve the stability and reduce the deformation	carbon fiber



Applications:



A. Shafts



B. Valve Components



C. Automatic Door Components



D. Cable/ Electronic Connector



E. Fire Suppression System Components



F. Fittings/ Fasteners



G. Gears/ Hardware



H. Roller Bearings



Competitive Advantage:



1, 100% guarantee: Providing with your exact specs. If didn't meet a burrs/tolerance/smoothness, we will



replace all the products or issue you a credit.



2, Flexible Order: We handle both short run and large production run; as small as 50 pieces to as large



as 1000000 pieces (Normal Material only).



3, Delivery on Time: Multiple facilities, strong Engineering team, over 80 staffs, Ensure Supply.

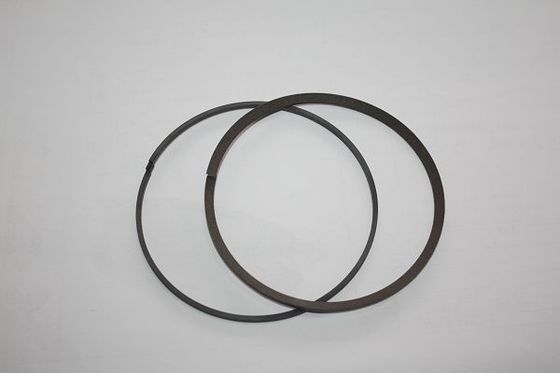

Picture Show
