| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Φ36mm |
| Minimum Order Quantity: | 2,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard exporting package without logo, company name and other information |
| Delivery Time: | One week after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300,000pcs per month |
| Product Name: | Shock Piston | Density Of Sinter Piston: | More Than 6.5 |
|---|---|---|---|
| Material Of Bands: | Filled PTFE | Tooling Design: | By XIAYI |
| Application: | Rear Shock Absorber | Density Of Bands: | 2.06-2.15 G/cm3 |
| Outer Diameter: | 35.95mm | Tooling Production: | By XIAYI |
| High Light: | shock absorber parts,damper piston |
||
Steam treatment for sinter piston and PTFE bands shock piston with good seals
Specifications:
|
Physical performance for shock piston |
tensile strength |
More than 15MPa |
|
elongation @ break |
More than 200% |
|
|
shore hardness |
57 - 61 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.3 |
|
|
highest working temperature |
260℃ |
Description:
Customized D36 cars 6 round & square holes design Shock Absorber Piston
We are a professional factory engaging in producing reliable suspension absorber pistons, with many
years’ experiences in this line. The pistons can be used in front or rear shock absorbers from SUBARU,
IVECO, PEUGEOT, CHEVY, CAMRY and so on.
We own a strong team to research and develop automatic machines. We have more than ten machines
now and the annual capacity can reach over 15,000,000 PCS.
SPEC: D36XD10X11
• 6 pairs of holes
• All the holes are inclined
• The pistons are exported to Japan
• Net weight is 48.29g
• We can do drawing load test for banded piston with no band slippage after test.
Here are the physical properties of our products:
Tensile strength ≥23N/mm2
Carrying capacity ≥15N/mm3
Working temperature -80°C to 260°C
Friction coefficient (dry) ≤0.16μ
Friction coefficient (oil) ≤0.05μ
Advantage:
Complex multi-level design
Flexile and convenient logistic service
Significant increase in lifetime
Standard material according to technical drawing
Can absorb most shake when driving
Increased seal durability
Processing of sinter parts:
Powder blending—forming—Sinter—Sizing—Machining—Steam treatment—Oil impregnation
Process of PTFE banding:
Powder blending—PTFE cylinder compression—Sintering—PTFE disc production—repressing—heat
press—molding—deburring—inspection—packing
Materials:
PTFE+BRONZE
PTFE+BRONZE+ACID TREATMENT
PTFE+CARBON FIBER
PTFE+GLASS FIBER+INTENSIFIER
OTHER material or fillers
Applications:
Used in car or motorbike shock absorbers
Competitive Advantage:
XIAYI can produce bands rings by itself to low down the cost and control the quality at home, at the same
time XIAYI can design and produce automatic banding machine and non-standard testing machine, can
test drawing force testing and oil immersion testing.

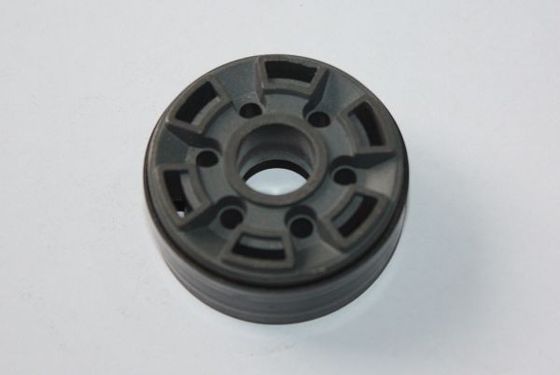

Picture show:
