Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair

Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair

  • Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
  • Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
  • Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: Φ27mm
Payment & Shipping Terms:
Minimum Order Quantity: 5,000pcs
Price: negotiation
Packaging Details: Standard exporting package or according to customer's demand
Delivery Time: Two weeks after PO confirm
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Banded Piston Density Of Sinter Piston: More Than 6.5g/cm3
Material Of Bands: Fillled PTFE Application: Car Shock Absorber
Density Of Bands: 2.06-2.19 G/cm3 Outer Diameter: 27mm
High Light:

shock absorber parts

,

shock absorber reconditioning





PTFE banding D27 Shock Absorber Piston with good seal and low friction for shocks





Specifications:



Various testing machine

Density balance

Shore hardness

Projector

Drawing force testing machine

Fatigue testing machine

Abrasion testing machine

Tensile testing machine

Oil immersion testing machine

Friction testing machine





Description:



PTFE banding D27 Shock Absorber Piston with good seal and low friction for various automotive



Our company produces shock absorber pistons with variety types. These shock absorber pistons can be



used in different car shock absorbers.



We have a strong team to research and develop automatic banding machines and annual capacity can



reach more than 20, 000, 000 PCS.





SPEC: D27XD8.5X12



•      The piston is exported to Malaysia



•      Used for rear shock absorber



•      Material: F10.U3.60



•      Hardness 65 HRB min



•      Inclined holes



•      Density is 6.3g/cm3



•      With steam treatment



•      Net weight is 27.82g





Here is the physical property of banding rings:



Tensile strength≥18MPa



Working temperature=-80~260℃



Friction coefficient ≤0.20



Coefficient of linear expansion=1.5*10-4l/℃



Elongation at break≥180%



density=2.12-2.22g/cm3



hardness=52-62





We can use the following material to produce discs:



1. PTFE+BRONZE



2. PTFE+CARBON (GRAPHITE)



3. PTFE+CARBON FIBER



4. PTFE+GLASS FIBER



5. OTHER FILLERS SUCH AS MOLYBDENUM DISULFIDE OR EKONOL





Applications:



Car or motorbike shock absorbers





Competitive Advantage:



XIAYI is a professional company which produces different size and design shock absorber pistons.

XIAYI has a complete set of testing equipment which can control the quality for the material.

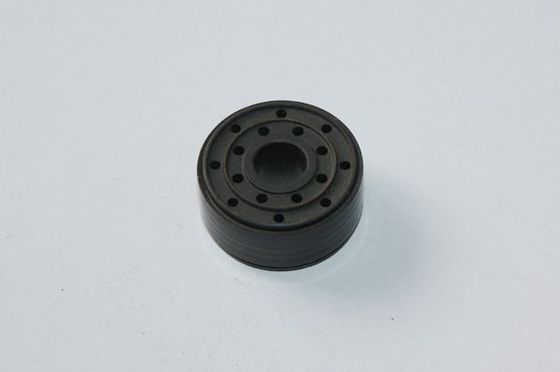

Picture show:





Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair 0



Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair 1
