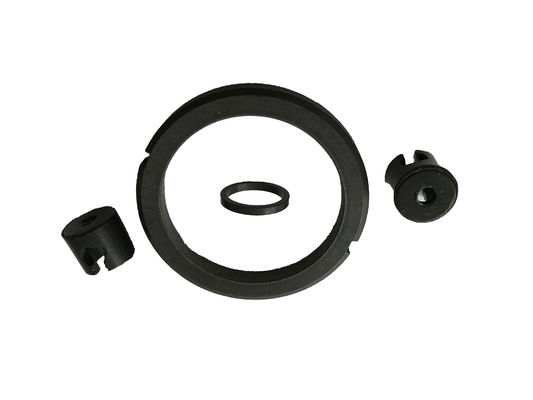

Graphite Filled black color PTFE rings used as self lubricating seal

Graphite Filled black color PTFE rings used as self lubricating seal

  • Graphite Filled black color PTFE rings used as self lubricating seal
  • Graphite Filled black color PTFE rings used as self lubricating seal
  • Graphite Filled black color PTFE rings used as self lubricating seal
  • Graphite Filled black color PTFE rings used as self lubricating seal
Graphite Filled black color PTFE rings used as self lubricating seal
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: PTFE-J0808-1
Payment & Shipping Terms:
Minimum Order Quantity: 1,003pcs
Price: negotiation
Packaging Details: Packed in plastic box one by one, then in carton with standard export package
Delivery Time: 10 working days for new samples
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: PTFE Stopper Filler: Graphite,carbon, Bronze
Process: Mould Application: Industrial Pump
Temperature: -180 - + 260 ℃ Mold Time: 7 Days
Density: 2.1-2.3 G/cm³ Out Diameter: 16mm
High Light:

teflon products

,

Teflon components



Graphite Filled black color PTFE rings used as self lubricating seal





Specifications:



Filled PTFE ring has strong corrosion resistance and friction-resistance, By adding filler such as glass



fiber, carbon fiber, copper powder,graphite,asbestos,MOS2,AL2O3,carbon powder, ceramic fiber, metal



powder, polyamide, PS, the hardness, compression strength and abrasion resistance of the products is



improved ,in addition, it will have good heat conductivity and low heat expansion coefficient.



1. Low water absorption

2. Corrosion resistance

3. Temperature resistance

4. High diaphaneity

5. Voltage resistance



Description:



PTFE Gasket Ring

Size: As customer's demand

Material: PTFE resin

Function: Good quality

Certificate: ISO9001 & TS16949



Packaging Detail: Poly bag + wooden cases or as customer demand

Delivery Detail: 2 weeks



Property of PTFE



Of all the known plastics, PTFE has some remarkable properties: it will not attacked by corrosive acids, even if they were hot; it did not dissolve in solvents; it could be cooled to -180°C without becoming brittle and it could be heated to 260°C without impairing its performance. PTFE materials also are extremely stable and nonflammable; clean, dry, non-oily and non-staining. The material is biologically inert and does not support biological growth (that is, it is non-pyrogenic). PTFE offer an extremely low static coefficient of friction, which stems from the extremely low intermolecular forces in the PTFE molecule itself.

Apparent Density: 2.1 ~ 2.3 g/cm3

Tensile Strength: ≥ 14.0 Mpa

Ultimate Elongation: ≥ 140%

Temperature: -20° F to 500° F (-180°C to 260°C)



Function for different filler



Carbon fiber Increases compressive strength, rigidity and wear
Reduces creep and cold flow
Minimal effect on chemical and electrical properties
Carbon Increases compressive strength, hardness, wear, and load properties
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity
Graphite Reduces coefficient of friction
Reduces initial wear
Increases strength
Molybdenum Disulfide Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties
Bronze Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications





Applications:



1. Automotive Part

2. Motorcycle Part

3. Pump Parts

4. Locomotive Parts

5. Machinery Parts

6. Tool Parts

7. Industrial parts



Competitive Advantage:



1.      Can produce according to customers’ drawings

2.      Complete set of inspection equipment

3.      Advanced production equipment
