| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | XYJD-PM1129-L |
| Minimum Order Quantity: | 2,043pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard exporting package |
| Delivery Time: | One month after technical details are confirmed |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50,000pcs per month |
| Product Name: | Piston | Material: | Iron Based Or Others |
|---|---|---|---|
| Press Machine: | 100T - 200T | Quality Control: | 100% Inspected |
| Application: | Car Shocks | Plating: | Customized |
| Sample Time: | One Month | Surface: | Rust-preventive |
| High Light: | banded piston,shock absorber parts |
||
Slope 0.09 low friction force Shock Piston PTFE Band on OD Applied In Truck Shocks
Poly Fluoro Piston Bands are designed for hydraulic and pneumatic equipment. Its unique design
prevents equipment seizures which can arise with other forms of guidance materials. Poly Fluoro Piston
Bands offer extremely low friction and break-away forces. This material is also resistant to all hydraulic
fluids, and is suitable for temperatures up to 200°C.
Poly Fluoro Piston bands are the solution to costly cylinder re-machining and repairs for large diameter
equipment. Coils are available in common sizes and are easy to use, cut and install.
|
Key advantages |
Prevents metal to metal scoring and prolongs equipment life |
| Reduces radial movement on both rams and pistons to extend seal life | |
| PTFE lubricant allows for lower coefficient of friction between mating surfaces | |
| Retrofits existing bearing groves and eliminates unnecessary modifications | |
| Available in common groove width dimensions, minimizing inventory costs | |
| Strips can be cut to size from the coil |
We are one of the Designer, Manufacturer for Powder Metallurgy parts of following Items.
1.) Types of Pistons, Foot Valves, Rod Guide for Shock Absorber parts
2.) Types of Gears / Pinion / Sprocket / Helical Gear etc.
3.) Garden Tools parts
4.) Hardware Parts
5.) Sewing Machine Parts
6.) Other Iron Powder metallurgy parts
7.) Other sintered parts
Material:
Carbon steel, Low Carbon steel, middle carbon steel, G35, G45, WCB, WCA, WCC, ISO 340-550,
Alloy Carbon steel: G25CrMo4, Heat Resistant Steel,
Stainless Steel: CF8, CF8M, . G-X6CrNiMo1810, G-X7CrNiNb1189, SUS 304, 304L, 316, 316L.OR
According to customer requirement
Copper alloy
Brass: HPb59-1, CuZn39Pb1/2/3, CuZn40, C36000, C37710, C67400, etc.
Aluminum Bronze: QAl11-6-6, CuAl10Fe2/3, CuAl10Ni5Fe5, C65500, C95600, C87500
Sn Bronze: CuPb5Sn5Zn5, C83600, C84400, C86500. etc.
Specifications:
|
Item |
Powder Metallurgy bottom valve |
|
Tolerance |
According to the drawings |
|
Surface finishes |
polishing, heat treatment |
|
QC equipment |
Three-D machine, Projector, caliper, height gage |
|
QC system |
100% inspection before shipment |
|
Processing Technical |
CNC machining, CNC milling, CNC turning, EDM, Stamping, Forging, Casting, Punching, Drilling, Broaching |
Description:
Product Name: Shock Absorber base valve, foot valve
Raw Materials MPIF FC-0205 or FC-0208
Feature
1. Density from 6.5-6.7 g/cm3
2. Hardness: HRB 60-100
3. Steam treatment: 2H high temp steam holding time, Thickness of Fe3O4: 0.004-0.005mm
4. Full line products for shock absorber, including powder metallurgy piston, rod guide, Foot valve, PTFE band for piston, Du bearing for rod guide.
5. PPAP III is submitted accordingly.
Processing:
Mixing powder— Forming— Sintering— Sizing— After treatment— Steam treatment— Oil impregnant—
Packing— Shipping
Manufacture ability
1. Auto Mechanical Press: 50T, 100T, 140T
2. Hydraulic Press: 100T, 315T, 600T, 800T
3. Six sinter furnaces, including one harden Sinter Furnace
4. Heat treatment: Carbonitriding quenching and high frequency quenching
5. Ultrasonic clearing and auto de-burring
6. In-house tooling making: EDM, wire cutting machine
7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.
Test Ability.
1. Carbon sulfur determinator
2. Metallurgic microscope
3. Hydraulic universal material tester
4. Hardness testers
5. Pneumatic measuring instrument
6. Measuring projector
7. Gear testing instrument
8. Electrical profile meter
9. CMM
Applications:
Automotive Part
Motorcycle Part
Metal Powder Sintered Parts
Locomotive Parts
Machinery Parts
Tool Parts
Competitive Advantage:
1. High precision
2. 100% quality with competitive price
3. Good abrasion resistance
4. High efficiency
5. Save energy

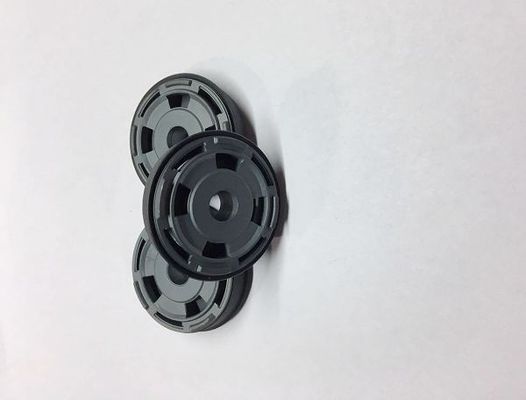

Picture show:
