Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing

Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing

    • Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
    • Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
    • Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing
  • Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing

    Product Details:

    Place of Origin: China
    Brand Name: XIAYI
    Certification: ISO9001:2008
    Model Number: DU

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotiation
    Packaging Details: Packed in carton firstly and then reinforced with wooden case for outer packing
    Delivery Time: Sample Generally 10 Days And Mass Cargo According To Quantity
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 50,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Bushing Density: 6.0-6.8g/cm3
    Surface Roughness: Ra0.8 Material Of Bands: Bronze Steel
    Parallelism: +/-0.005mm Application: Car Shock Absorber
    Lubricating: Graphite, Carbon, Oilless, POM, PTFE Standard: DIN1494,ISO3547,ISO2795
    High Light:

    oilless bearings

    ,

    sliding bearing





    Machining Of Sleeve Du Bushing with rust-proof oil plated used in gear pump





    Specifications:



    SF-1(du) oilless bearing bushing (PTFE Composite)



    SF-2 (dx) slide bearing bushing (POM Composite)



    FB090 (FB090G) bronze bushing



    FB092 bronze bushing



    JDB, JFB solid graphite lubricating bushing



    JF bi-metal bushing



    FU sintered bronze or iron bushing



    FZ POM/Al/Cu ball cage retainer



    FR metal mesh + PTFE Soft strips



    JGB Graphite bearings





    Description:



    DU bushing is a standard item of our company



    DU bearing is also called PTFE bushing, SF-1 oilless bearing, PTFE lined bearing, plain dry bushes, DU



    bush.



    Product Feature



    Structure: Bronze Backing + Bronze Sinter + PTFE/PB



    1. PTFE/PB mixture 0.01 - 0.03mm, provides an excellent initial transfer film, which effectively coats the



    mating surface of the bearing assembly, forming an oxide type solid lubricant film.



    2. Sintered bronze powder 0.20 - 0.35mm, provides max. Thermal conductivity away from the bearing



    surface, also serves as a reservoir for the PTFE-lead mixture.



    3. Bronze backing, gives exceptionally high load carrying capacity, excellent heat dissipation. Have very



    good corrosion resistance.





    Technical data

    Max load capacity

    Static

    250N/mm2

    Temp. limit

    -195℃~+280℃

    dynamic

    140N/mm2

    Friction coefficient

    0.03~0.20

    Speed limit

    dry

    2m/s

    Thermal conductivity

    42W(m*K)-1

    oil

    <2m/s

    PV limit(dry)

    Short time

    3.6N/mm2*m/s

    Linear expansion

    11*10-6*K-1







    Availability:



    Standard cylindrical bush, flanged bushing, thrust washers and strips are available.



    Special designs can be made according to your requirement



    Lead free bushing is also available



    Applications:



    DU bearing is widely Lifting equipment, Hydraulics and valves, pneumatic equipment, medical equipment,



    textile machinery, agricultural equipment, construction equipment, material handing equipment, packaging



    equipment, automotive field, scientific equipment, drying ovens, office equipment, etc.





    Applications:



    Car or motorbike shock absorber





    Competitive Advantage:



    1. A complete set of testing equipment

    2. Rich experience in bushing production

    3. Good outsource factory

    4. Have an audit for material supplier every year





    Picture Show

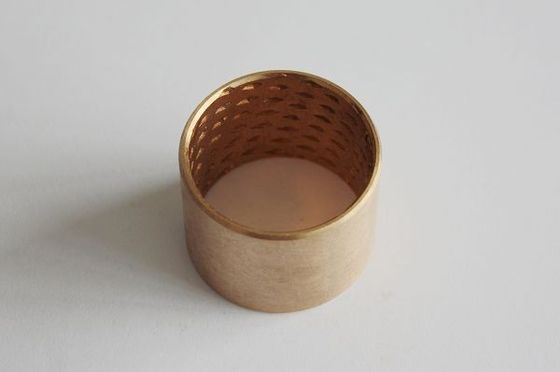

    Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing 0



    Machining Of Sleeve Du Bushing with rust - proof oil plated , bi metal bushing 1
