| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Customized piston |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in plastic box one by one, then in carton with standard export package |
| Delivery Time: | 25 working days for new samples |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50,000pcs per month |
| Product Name: | Piston | Material: | Fe-C-Cu |
|---|---|---|---|
| Press: | 120T | Application: | Shock Absorber |
| Molds Time: | 25 Days | Plating: | Steam Treatment |
| Net Weight: | 28.36g | Size: | 27mm |
| High Light: | powder metallurgy components,PM parts |
||
One Time Molding 120T Press Powder Metallurgy Sinter Piston with proper hardness
Features:
unique holes for oil bleed
strong surface hardness
good seals for PTFE material
we can use the material according to the customer's demand
Increased seal durability
provide a good seal between the cylinder wall and piston
reliable and superior quality
Specifications:
|
Material |
P/M Copper and Copper Alloys |
|
P/M Iron and Carbon Steel |
|
|
Iron And Carbon Steel |
|
|
Iron-Copper And Copper Steel |
|
|
Sinter Hardened Steel |
|
|
Commix Low Alloy Steel |
|
|
Surface treatment |
Sand Blasting |
|
Zinc/Chrome Plating |
|
|
Rust-preventive treatment (steaming treating) |
|
|
Painting |
|
|
Electrophoresis |
|
|
Powder Coating |
Description:
Good quality sintered metal piston used together with PTFE straps
Our company produces different kinds of powder metallurgy products. These powder metallurgy products
including sintered rod guides, sinter pistons & sinter foot valves, the parts are delivered in a fully finished
condition and ready to be assembled along with other shock absorber components.
Sintered parts
Size: D26.8XD7.2X15
|
properties |
data |
|
Crushing strength (KN) |
≥7 |
|
Density (g/cm3) |
≥6.4 |
|
Hardness (HRB) |
55-65 |
Material actual component
Fe: 97.58%
C: 0.62%
Cu: 1.7%
Others: 0.1%
Material: MPIF FC-0205 or FC-0208 from GKN
No steam treatment
Die tooling design and making in house
Ultrasonic clearing and auto de-burring
The sintered part has the following major advantages:
(A) High precision due to mold- Based production.
(B) Low price due to its inherent feature of automation for mass production
(C) Flexibility of material composition due to wide variety of powder formula on Fe- Cu- Ni alloy
Applications:
1. Automotive Part
2. Motorcycle Part
3. Pump Parts
4. Locomotive Parts
5. Machinery Parts
6. Tool Parts
Competitive Advantage:
1. Good service
2. Reasonable price
3. Strict quality control system
4. Punctual lead time
5. ROHS compliant

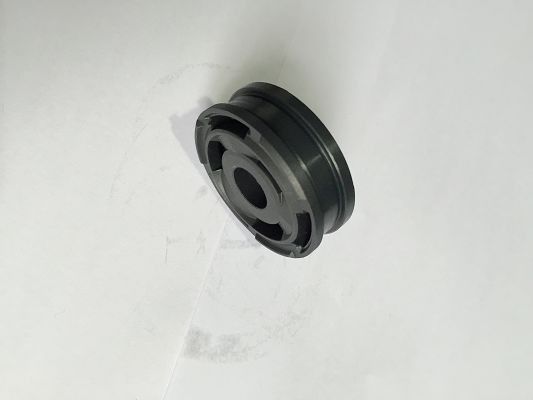

Picture show:
