Aging resist and no - sticky PTFE banded piston , Auto Shock Absorber Parts
  • name
  • name
  • name

Aging resist and no - sticky PTFE banded piston , Auto Shock Absorber Parts

MOQ: 5,000pcs
Price: negotiation
Standard Packaging: According to customer's demand
Delivery Period: 10 working days after payment
Payment Method: T/T, L/C
Supply Capacity: 80,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
Φ32mm
Product Name:
Banded Piston
Drawing Load Test:
39.2 MPa X 10,000 Cycles
Material Of Bands:
PTFE PTFE 6507A NC010 (Dupont)
Application:
Car Shocks
Density Of Bands:
2.06-2.19 G/cm3
Size:
32mm
Highlight:

shock absorber parts

,

shock absorber reconditioning

Product Description





Aging resist and no-sticky PTFE banding piston in auto Shock Absorber





Specifications:



Here is the physical properties of our products

Tensile strength

≥23N/mm2

Carrying capacity

≥15N/mm3

Working temperature

-80°C to 260°C

Friction coefficient(dry)

≤0.16μ

Friction coefficient(oil)

≤0.05





Description:



Aging resistance and no-sticky powder metallurgy PTFE banding piston D32 auto Shock Absorber Piston



Xia Yi mainly produces shock absorber pistons with many different dimensions.



We have a strong technical team to develop automatic skirting machines which can assure the



consistency of the pistons and also can improve the work efficiency. Compared with other suppliers, we



are sure we can offer you the more competitive price and quality.



Piston is based on powder metallurgy, filled modified PTFE material, using a special way to combine them



together, which has dual advantage of powder metallurgy and PTFE.





(1)Advantage of powder metallurgy:



Unique chemical composition and mechanical physical properties



(2)Advantage of PTFE:



Chemical and aging resistance, temperature endurance and no-sticky performance



(3)Advantage of piston:



High carrying capacity, good wear resistance, low friction coefficient, good seal and so on





SPEC: D32XD8.5X13.5



Inclined holes design



The pistons are used for primary market



Lateral force 800N added after piston is closed in dampers, amplitude +/-25mm



Piston ring don't drop down and no abnormal abrasion after 4 million times vibration



Net weight is 35.58g





Applications:



Car or motorbike shock absorbers





Competitive Advantage:



XIAYI is a professional company which produces different size and design for shock absorber pistons.



XIAYI has a complete set of testing equipment which can control the quality for the material.





Picture show:

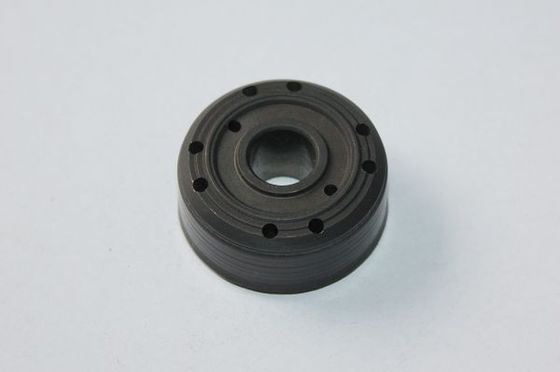

Aging resist and no - sticky PTFE banded piston , Auto Shock Absorber Parts 0



Aging resist and no - sticky PTFE banded piston , Auto Shock Absorber Parts 1











Tags:

shock absorber reconditioning,

shock absorber parts,

shock absorber piston
