| Place of Origin: | NINGBO,CHINA |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | guide ring |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |

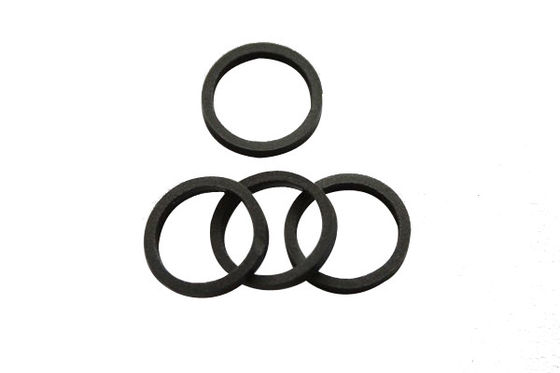

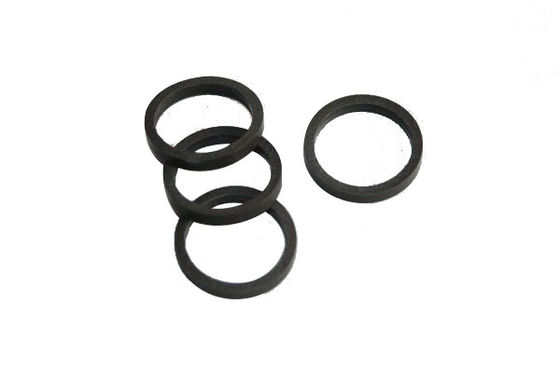

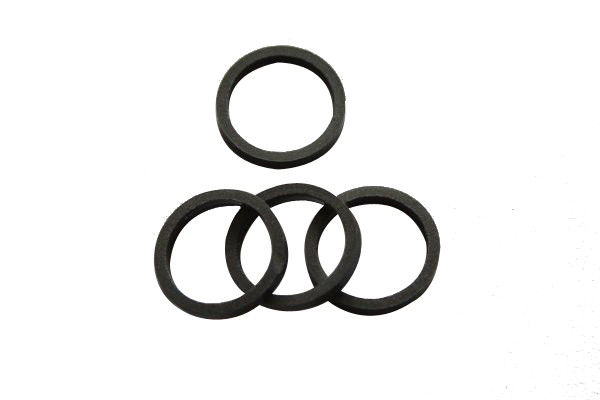

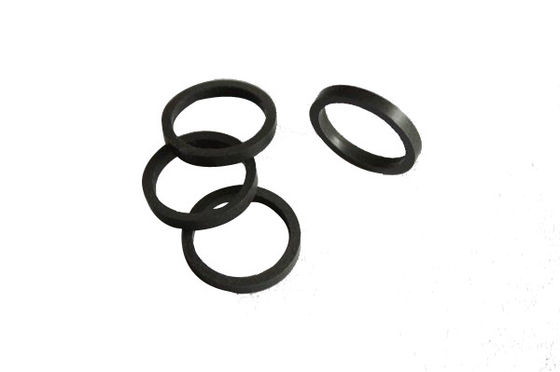

| Part Name: | Oil Guide Ring | COLOR: | Black |
|---|---|---|---|
| Material: | PTFE | Technology: | Compacting |
| Mold Time: | 7-10 Days | WEIGHT: | 0.15g |
| Highlight: | 8rpm Hydraulic Piston Motor,500rpm Hydraulic Piston Motor,NIM2-280 Hydraulic Piston Motor |
||
Part Name: Speed Range From 8 - 500 rpm Hydraulic Motor Use For Ship
Especially applied in mining and plastic machinery
Technical Parameters:
|
Model |
Displacement mL/r |
Pressure MPa |
Torque
|
Speed r/min |
Weight Kg |
||
| Rated pressure | Max pressure |
Rated torque N.m |
Unit theoretical torque N.m/MPa |
||||
| NIM2-280 | 276 | 16 | 20 | 653 | 41 | 8-500 | 27 |
Application:
Can be widely used in construction machinery, lifting transport equipment, heavy metallurgical machinery, petroleum coal mining machinery, ship deck machinery, machine tools, plastics, geological drilling equipment and other mechanical hydraulic transmission system.
NIM series hydraulic motors are based on years of experience in manufacturing hydraulic motors, absorbing the advantage of crankshaft and connecting rod hydraulic motors at home and abroad. Greatly improved the pressure level of the hydraulic motor. This series motor has good reliability, high efficiency, long life and low noise, wide speed range and other characteristics.
The principle is to transfer the force from the plunger to the rotating shaft, rather than the conventional motor, connected by rod, piston, gasket and thimble. By choosing high-quality materials and optimal design to reduce friction and leakage.
Another advantage is that the cylinder can only expand and contract linearly, so there is no lateral component to the force. Means that there is no elliptical wear on moving parts and no lateral force at the connection of the cylinder. A series of novel designs, it is significant to reduce and optimize the size, especially compared with the traditional hydraulic motor with the same displacement.
Detail drawings and performance curves:
 |
|
|
|
Other drawings
|
|
