High Temp Resist PTFE Ring Gasket
  • name
  • name

High Temp Resist PTFE Ring Gasket

MOQ: Negotiation
Price: Negotiation
Standard Packaging: Standard Export Wooden Case
Delivery Period: 7-15 working days
Payment Method: L/C, T/T
Supply Capacity: 1000 units per month
Detail Information
Product Description
Detail Information
Place of Origin
NINGBO,CHINA
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
gasket
Part Name:
Ptfe Ring
COLOR:
CUSTOMIZED
Material:
Ptfe
Hardness:
57-61
Density:
2.14
WEIGHT:
1.08g
Highlight:

16MPa Rotary Power Hydraulic Motor

,

16MPa hydraulic rotary motor

Product Description

High Temp Resist PTFE Ring Gasket With Hardness 57 Used As Piston Banding Material



Specifications:

properties unit result
Apparent density g/cm3 2.10-2.30
Tensile strength(min) MPa 15.0
Ultimate elongation(min) % 150
Working Temp. ℃ -180~260
Melting point ℃ 327
Produce Max Temp. ℃ 385
Size mm 20mm~400mm



1. Good sealing effect in Dynamic and static sealing



2. Minimal start-up and movement friction, smooth movement even at low speeds, no creeping



phenomenon.



3. Good abrasion.



4. Excellent sliding performance.



5. Easy to installation



Description:



China Molding and Machining PTFE parts



PTFE custom made



Fluoropolymer molding parts manufacturers



Production of PTFE parts and component



High quality PTFE OEM service



Produced by customer's design





Characteristic



Excellent chemical stability and electric insulation;



Excellent self lubrication and heat stability;



Excellent ageing-resistance performance and radiation resistance



Color: Natural color or as customer's requirement



Size: Standard size or as customer's requirement



Manufacture method: Injection or machinery process



Packing: standard packing or customized package



Sample: similar size for test or customized samples can be offered



Lead time: 10~25days



Application



1. Corrosion-resistant pipe and fittings: pipes, pipe connections, feeding tubes, discharge tubes, wires



and other flexible casing;



2. Chemical devices: a heat exchanger, distillation unit (tower reactor, pylon, heat exchangers, tanks,



valves, elbows, tees, etc)



3. Electrolytic membrane, gas dialysis membrane, oil and water membrane, etc.



Applications:



A. Shafts



B. Valve Components



C. Automatic Door Components



D. Cable/ Electronic Connector



E. Fire Suppression System Components



F. Fittings/ Fasteners



Competitive Advantage:



Professional manufacturer for many years



Quality control and cost control



Short delivery



Factory price



Other pictures:

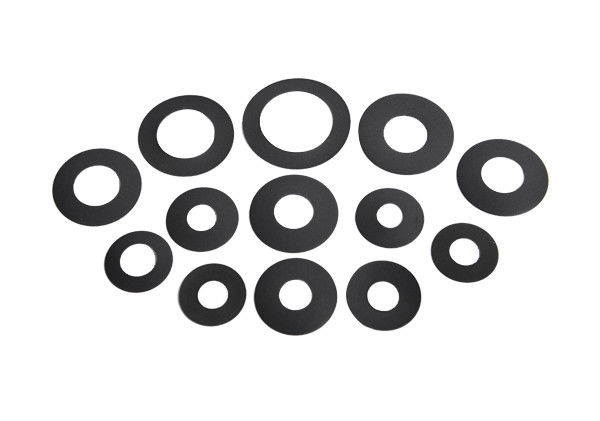

High Temp Resist PTFE Ring Gasket 0

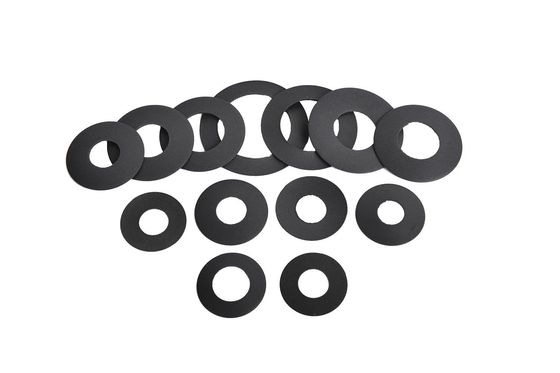

High Temp Resist PTFE Ring Gasket 1
Tags:

ptfe piston rings,

teflon backup rings,

teflon ring seal
