30mm PTFE banded Shock Piston with PTFE fillers banding Used in Car shocks
Specifications:
• 4 round and square holes
• conventional shock piston
• net weight is 35.29g
• we can do drawing load test for banded piston without band slippage after test.
| Physical performance for shock piston |
tensile strength |
More than 15MPa |
| elongation @ break |
More than 200% |
| shore hardness |
57 - 61 |
| density |
2.15 – 2.19 g/cm3 |
| wear |
Less than 50mg |
| friction coefficient |
Less than 0.3 |
| highest working temperature |
260℃ |
Description:
Upper OD 32.07 - 32.27mm
Nether OD 31.94 - 31.98mm
Manufacturability of powder metal parts:
Auto Mechanical Press: 50T, 100T, 140T...
Hydraulic Press: 100T, 315T, 600T, 800T
Six sinter furnaces, including one harden Sinter Furnace
Heat treatment: carbonitriding quenching and high frequency quenching
Ultrasonic clearing and auto de-burring
In-house tooling making: EDM, wire cutting machine
Durability testing:
| Stroke |
50mm |
| Speed |
1m/s |
| Side load |
30kgf |
| Temperature |
80℃+/-10℃ |
| Duration 3 million cycles |
No band peel off or breakage after test
| Test Ability |
Carbon sulfur determinator |
| Metallurgic microscope |
| Hydraulic universal material tester |
| Hardness testers |
| Pneumatic measuring instrument |
| Measuring projector |
| Electrical profilometer |
| CMM |
Strong R&D team
Responsible staffs
Clean workshop
We will bring you pistons with good quality and competitive price.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
XIAYI can produce bands rings to low down the cost and control the quality at home, at the same time we
can design and produce automatic banding machine and non-standard testing machine, can test drawing
force testing and oil immersion testing.

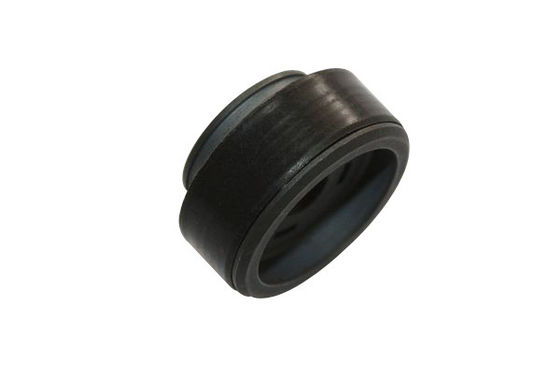

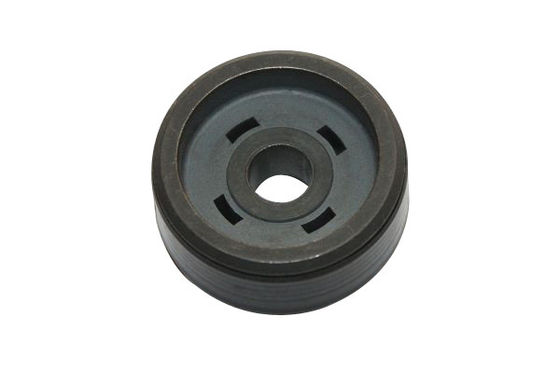

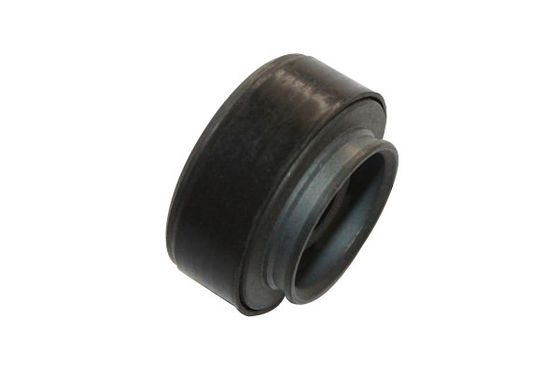

Picture show:
