Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: IATF16949:2016
Model Number: Φ32mm
Payment & Shipping Terms:
Minimum Order Quantity: 2,000pcs
Price: negotiation
Packaging Details: Packed in carton and then reinforced with wooden case for outer packing
Delivery Time: 10 days after payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300,000pcs per month
Contact Now
Detailed Product Description
Product Name: Shock Piston Density Of Sinter Piston: More Than 6.5g/cm3
Material Of Bands: Filled PTFE Density Of Bands: 2.15g/cm3
Application: Front Shock Absorber Outer Diameter: 32mm
Tensile Strength: 18MPa Hardness: 59-62
High Light:

32mm Shock Piston

,

P/M Method Shock Absorber Piston

,

Powder Metallurgy Shock Absorber Piston

Produced By P/M Method Shock Absorber Piston With Genuine Performance Full Set Of Testing





Specifications:

Product Name Powder Metallurgy Shock Absorber Piston
Meterial Details FC 0508, Fe Powder, (C, Sn, Zn), Steel PTFE Bushing
Max Density 6.3 g/cm2~6.9 g/cm3
Load Capacity Static load 120N/mm2 ; Dynamic load 40N/mm2
Production Process Mixing Powder-Powder Compacting-Sintering-Shaping-Machining-Surface Finish
Surface Treatment Machining, Oil Immersion, Steam Oxidation, Electroplate, Surface Blued
Standard DIN, JIS, ASTM, GB
General Tolerance ISO -2768 ; GB/T 1800.3-1995
Working Temperature -100~+200 Degrees Celsius
Application Automobile/Motorbike/Electromible/Bike Shock Absorber Accessories



Physical performance for shock piston

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness

57 - 61

density

2.15 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.3

highest working temperature

260℃



Piston is the most important part for the performance of Shock absorbers. Optimized molding, size accuracy and anti-abrasion PTFE banding process are important.



The sinter parts is powder metallurgy, it uses metal powder as raw material, through forming and sintering, manufacturing metal materials, composite materials and various types of products.



Powder metallurgy technology can be directly made into porous, semi-compact or full-compact materials and products, such as Shock absorber parts, Gears, Sintered bushing, Electric tools parts, Lock parts etc., which is a less cutting process.



To date, Xiayi's facilities allow to producing up to 2000 000 additional shock absorber parts per month; and if necessary, this number can be increased by acquiring new equipment. One of our advantages as a manufacturer of shock absorber components is price/quality ratio – we offer competitive prices and provide high quality in full accordance with customer’s drawings.


The quality of products supplied by Xiayi is ensured at every stage of production – from planning to packaging and delivery. Control is carried out at three levels: at factory in accordance with internal standards; by head office expert; by independent expert organizations, such as SGS, with appropriate certificate, by prior arrangement with client. This ensures stable product quality and customer’s confidence while cooperation with us.



Description:



glass fiber and Molybdenum disulphide filled PTFE banded shock pistons with low friction and low creep



physical properties:



percent Molybdenum disulphide: 7%



percent glass fiber: 5%



PTFE melting point: 327℃



Boiling point: 400℃



Decomposition TEMP: 620℃



Tensile elongation: 125%



Hardness: 59D



Material of sinter piston: Fe-C-Cu powder



Percent of C: 0.5%~0.8%



Percent of Cu: 2%~4%



Others: less than 1.5%



Percent of Fe: balance



We have a complete test equipment and can do property testing in our company.



Durability testing:



Stroke: 50mm



Speed: 1m/s



Side load: 30kgf



Duration 3 million cycles



Temperature: 80℃+/-10℃



No band peel off or breakage after test



Produced By P/M Method Shock Absorber Piston Full Set Of Testing 0



Applications:



Car or motorbike shock absorbers



Competitive Advantage:



Strong R&D team



Responsible staffs



Clean workshop



We will bring you pistons with good quality and competitive price.



Picture show:

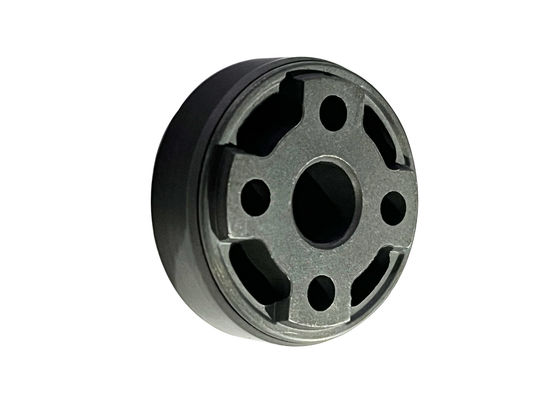

Produced By P/M Method Shock Absorber Piston Full Set Of Testing 1
