Pass blow - off testing filled PTFE banded Piston for automotive Shock Absorber

MOQ:	5,000pcs
Price:	negotiation
Standard Packaging:	Packed in carton firstly and then reinforced with wooden case for outer packing
Delivery Period:	10 working days after payment
Payment Method:	T/T, Western Union, L/C
Supply Capacity:	80,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XIAYI

Certification

ISO9001:2008

Model Number

Φ30mm

Product Name:

Banded Piston

Sinter Parts Density:

More Than 6.5g/cm3

Material Of Bands:

Fillled PTFE

Application:

Car Shocks

Bands Density:

2.06-2.19 G/cm3

Size:

Technology:

PTFE Bands

Material Of Sinter Parts:

FC - 0208 Or FC - 0205

Highlight:

shock absorber parts

shock absorber reconditioning

Product Description

Pass blow-off testing filled PTFE banded Shock Absorber Piston in automotive

Specifications:

Physical performance for shock piston	tensile strength	More than 15MPa
	elongation @ break	More than 200%
	shore hardness	57 - 61
	density	2.15 – 2.19 g/cm³
	wear	Less than 50mg
	friction coefficient	Less than 0.3
	highest working temperature	260℃

Description:

Pass blow-off testing filled PTFE banded Shock Absorber Piston

XiaYi company is specialized in producing shock absorber pistons from automobiles and motorcycles.

With development, we have reached annual capacity 2,000,000pcs. We have built good relationship with

some big shock absorber manufacturers at home and abroad.

SPEC: D30XD8X12

• The pistons are exported to Japan

• 4 small holes design

• All the holes are inclined

• Net weight is 30.45g

• Pistons can do performance test according to the customer's demand.

Here is the physical property of our products:

Tensile strength ≥23N/mm2

Carrying capacity ≥15N/mm3

Working temperature -80°C to 260°C

Friction coefficient ≤0.16μ

Manufacturability:

Auto Mechanical Press: 50T, 100T, 140T...

Hydraulic Press: 100T, 315T, 600T, 800T

Six sinter furnaces, including one harden Sinter Furnace

Heat treatment: Carbonitriding quenching and high frequency quenching

Ultrasonic clearing and auto de-burring

In-house tooling making: EDM, wire cutting machine

Strength in machining: Machine center, CNC milling, CNC lathe, two end lapper etc.

We have different kinds of testing machines such as abrasion test, density test, friction test, blow-off test,

hardness test, tension strength test and so on. So you can highly trust our advanced material.

As a modern company orientated towards organic growth it is in our interest that there is a team-spirit,

that everyone is reliable and that we are all following the same targets. Our highly motivated and

competent team can be depended upon to pursue the utmost aim of the company which is "customer

satisfaction" at a consistently high quality.

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

XIAYI is a professional company which produces different size and design for shock absorber pistons.

XIAYI has a complete set of testing equipment which can control the quality for the material.

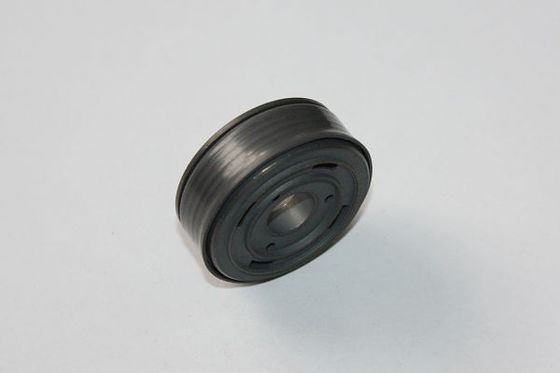

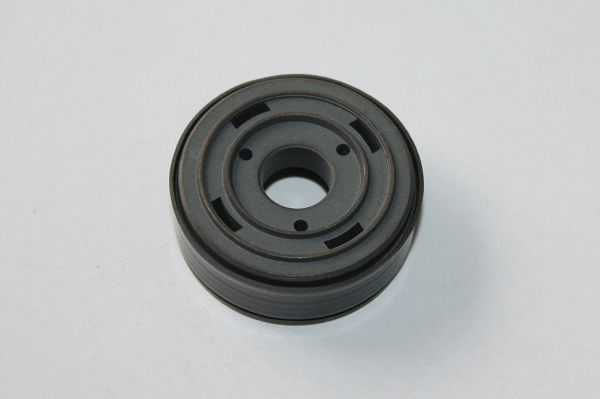

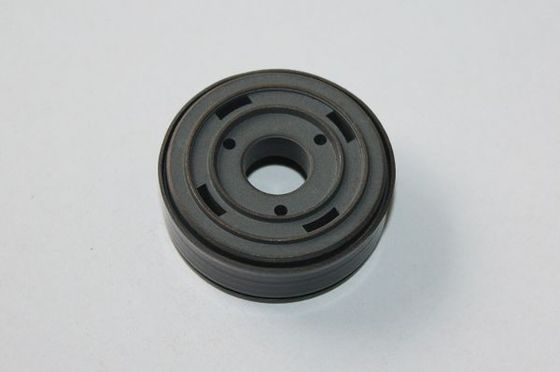

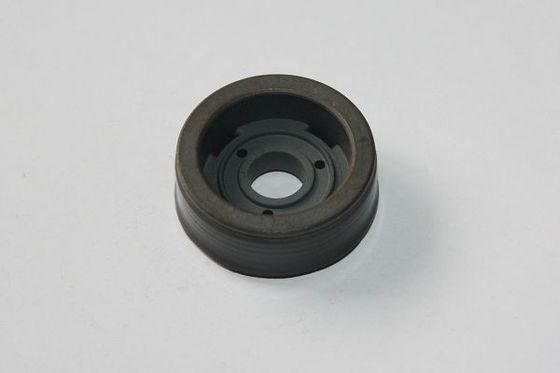

Picture show:

Pass blow - off testing filled PTFE banded Piston for automotive Shock Absorber 0

Pass blow - off testing filled PTFE banded Piston for automotive Shock Absorber 1
