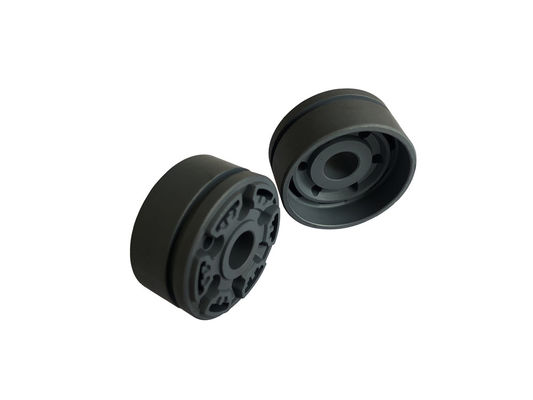

Large Steel Ring HRB110 Shock Absorber Piston

HRB 70 - 110 Large Shock Piston With Steel Ring Band On OD Applied In Truck Shocks


damping piston, piston, base valve, pistion rod guide are our mainly exported products.


We are one of the Designer, Manufacturer for Powder Metallurgy parts of following Items.
1.) Types of Pistons, Foot Valves, Rod Guide for Shock Absorber parts
2.) Types of Gears / Pinion / Sprocket / Helical Gear etc.
3.) Garden Tools parts
4.) Hardware Parts
5.) Sewing Machine Parts
6.) Other Iron Powder metallurgy parts
7.) Other sintered parts

Material:

Carbon steel, Low Carbon steel, middle carbon steel, G35, G45, WCB, WCA, WCC, ISO 340-550,

Alloy Carbon steel: G25CrMo4, Heat Resistant Steel,

Stainless Steel: CF8, CF8M, . G-X6CrNiMo1810, G-X7CrNiNb1189, SUS 304, 304L, 316, 316L.OR

According to customer requirement


Copper alloy

Brass: HPb59-1, CuZn39Pb1/2/3, CuZn40, C36000, C37710, C67400, etc.

Aluminum Bronze: QAl11-6-6, CuAl10Fe2/3, CuAl10Ni5Fe5, C65500, C95600, C87500

Sn Bronze: CuPb5Sn5Zn5, C83600, C84400, C86500. etc.

Specifications:



Description:

Product Name: Shock Absorber base valve, foot valve

Raw Materials MPIF FC-0205 or FC-0208

Feature
1. Density more than 6.4 g/cm3
2. Hardness: HRB 70-110
3. Steam treatment: 2H high temp steam holding time, Thickness of Fe3O4: 0.004-0.005mm
4. Full line products for shock absorber, including powder metallurgy piston, rod guide, Foot valve, PTFE band for piston, Du bearing for rod guide.
5. PPAP III is submitted accordingly.

Processing:

Mixing powder— Forming— Sintering— Sizing— After treatment— Steam treatment— Oil impregnant—

Packing— Shipping

Manufacture ability
1. Auto Mechanical Press: 50T, 100T, 140T
2. Hydraulic Press: 100T, 315T, 600T, 800T
3. Six sinter furnaces, including one harden Sinter Furnace
4. Heat treatment: Carbonitriding quenching and high frequency quenching
5. Ultrasonic clearing and auto de-burring
6. In-house tooling making: EDM, wire cutting machine
7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.

Test Ability.
1. Carbon sulfur determinator
2. Metallurgic microscope
3. Hydraulic universal material tester
4. Hardness testers
5. Pneumatic measuring instrument
6. Measuring projector
7. Gear testing instrument
8. Electrical profile meter
9. CMM

Applications:

Automotive Part
Motorcycle Part
Metal Powder Sintered Parts
Locomotive Parts
Machinery Parts
Tool Parts

Competitive Advantage:

1.  High precision
2.  100% quality with competitive price
3.   Good abrasion resistance
4.   High efficiency
5.   Save energy

Picture show:
