| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | Φ30mm |
| Minimum Order Quantity: | 2,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | According to customer’s demand |
| Delivery Time: | One week after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300,000pcs per month |
| Product Name: | Banded Piston | Filler Of Bands: | Carbon Fiber |
|---|---|---|---|
| Material Of Bands: | Filled PTFE | Color: | Black |
| Application: | Car Shock Absorber | Density Of Bands: | 2.15 G/cm3 |
| Outer Diameter: | 29.98mm | Working Temp.: | 260 ℃ |
| High Light: | banded piston,damper piston |
||
30mm Oil Flow Design Shock Absorber Piston With Elongation @ Break ≥100% Used in Cars
Specifications:
|
Physical performance for shock piston |
tensile strength |
More than 18MPa |
|
elongation @ break |
More than 160% |
|
|
shore hardness (bands) |
57 - 61 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.2 |
|
|
hardness (sinter piston) |
HRB60-80 |
|
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
|
With steam treatment |
||
|
OD tested by digital air gauge |
||
|
Wave design for PTFE bands |
||
Description:
30# shock absorber piston with HRB65-80, density 6.5g/cm3, band PTFE disc on OD used in car shock
absorbers
Xia Yi was found in 2005, after several years’ effort, we have achieved great success in the enterprise.
We increased our workshop this year and developed several new automatic machines which highly
improve our work efficiency.
We have a technical team to develop automatic banding machine and new generation machine has
improved much advantages compared with previous ones. We improve our pressing machine and other
machines to lower the cost and improve efficiency.
The detail information of the pistons:
1. Size: D30, used in automotive shock absorbers
2. Material, GRADE AND COLOR: PTFE PTFE 6507A NC010 (Dupont)
3. When temperature reach 100ºС, expansion ratio ≤+/-1%
4. Using the testing ring D26.6, with the shock absorber oil, max frictional force is 15N
5. Piston can get through freely of the certain size of cylinder with 2N force
6. PTFE tensile strength ≥18MPa, breaking tenacity ≥200%
7. Tight integration between piston and PTFE disc. PTFE won't fall off when working in the cylinder.
After processing performance can satisfy the following:
1) Stress cracking test 150ºС*500 hours
2) Drawing load test: 39.2 MPa*10,000cycles
3) High vilocity operation, durability test: 1,000,000 cycles
4) Regular operating durability test: 3,000,000 cycles
No band peel off or breakage after test.
Advantages:
1. Consistency in size for the same batch pistons
2. Infrared ray detect the diameter
3. Produce the PTFE disc by Xia Yi can control the quality itself
4. Enough testing machine can assure the material properties
We can use the following material to produce PTFE discs:
We can add bronze powder or carbon fiber or graphite or other fillers in PTFE
Lip design: We can design no lip, single lip or double lip according to the customer’s demand.
Xia Yi produces shock absorber pistons with many different types. These pistons can be used in front or
rear shock absorbers.
We have a strong technical team to research and develop automatic skirting machines. Only need to put
PTFE discs and sinter pistons on table, the machine will do the job to combine them together and finally
get the finished PTFE banded pistons.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Unique material for shock piston bands
Pistons are produced by automatic banding machine can assure the consistency of the size
Complete testing equipment

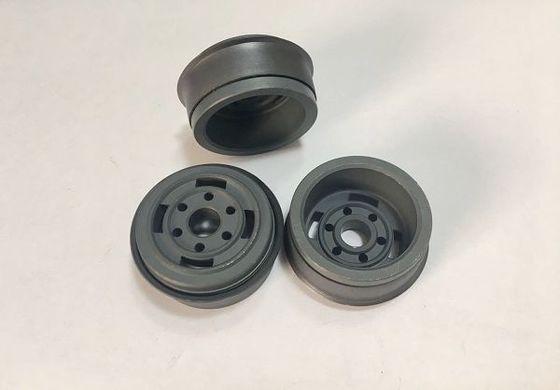

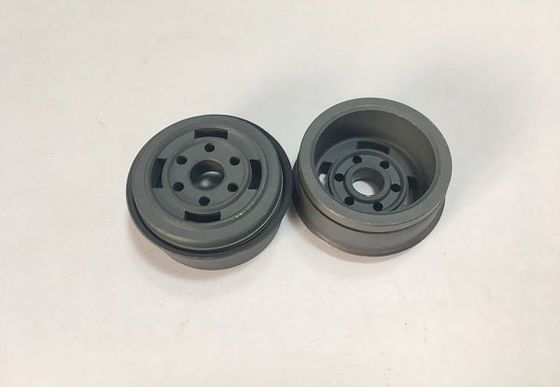

Picture show:
