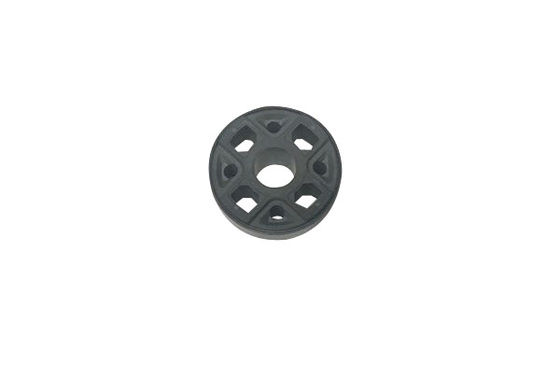

370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves

370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves

370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves
370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves
370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: IATF16949:2008
Model Number: Φ32mm
Payment & Shipping Terms:
Minimum Order Quantity: 1052pcs
Price: negotiation
Packaging Details: Packed in carton firstly and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 80,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Banded Piston Carrying Capacity: ≥15N/mm3
Material Of Bands: PTFE Plus Fillers Application: Car Shock Absorber
Density Of Bands: 2.06-2.19 G/cm3 Size: 31.5mm
Stress Crack Test: 150℃ X 500 Hours Durability Test: 3,000,000 Cycles
Highlight:

shock absorber parts

,

shock absorber reconditioning

370 ℃ Sintering Temperature with temp curves Banded Piston with density 2.15 g / cm3





Banded piston can do slide resistance test according to the customer's demand.


piston should slide down uniformity both in positive and contrary direction,no damping stagnation.


Testing demand:


test velocity is 3mm/min,Static strength damage:11.27KN


net weight is 23.60g





Manufacturability:



1.Auto Mechanical Press:50T, 100T, 140T

2.Hydraulic Press:100T, 315T, 600T, 800T

3.Six sinter furnaces, including one harden Sinter Furnace

4.Heat treatment:Carbonitriding quenching and high frequency quenching

5.Ultrasonic clearing and auto deburring

6.In-house tooling making:EDM, wire cutting machine

7.Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.



Test apparatus list



1:callipers / micrometer

2:dial gauge

3:go/no-go gauge

4:gauge stick

5:run-out test instrument

6:electronic balance

7:metallomicroscope

8:three element analyzer

9:carbon and sulfur analyzer

10:hardmeter

11:universal tester





Specifications:

Physical performance for shock piston

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness

57 - 61

density

2.15 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.3

highest working temperature

260℃





Description:



High temperature resistance, two holes design D31 cars Shock Absorber Piston



XIAYI is a professional factory engaging in producing shock absorber pistons, with more than six years



experiences in this line.



As we know, shock absorbers play a large part in the performance of the vehicle and are therefore



advised for a routine check up at regular intervals.



We can offer you the pistons with good quality and fit for the different road condition. We choose



advanced material and this provides long seal life, contributing to shock absorbers that can meet the



demands from car manufacturers of one hundred thousand kilometers before replacement.



SPEC: D31.5XD8.5X13



Two holes design



Symmetrical distribution



Surface roughness Ra<3.0μm



Net weight is 23.52g



Here is the physical property of PTFE rings:



Tensile strength       ≥23N/mm2



Carrying capacity    ≥15N/mm3



Working temperature    -80°C to 260°C



Friction coefficient (dry)       ≤0.16





Advantage:



1. Wide temperature range/high temperature resistance



2. Standard material according to technical drawing



3. OEM quality standard guarantee



4. Sample purpose order accepted



5. Complex multi-level design



6. Reduces friction and ensure smooth rod reaction





Applications:



Car or motorbike shock absorbers





Competitive Advantage:



Fast delivery



Good quality



Professional team with much experience





Technical process



370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves 0





Picture show:











Different Filler's influence



370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves 1





Our letters patents



370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves 2

Pictures:

370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves 3

370 ℃ Sintering Temperature Shock Absorber Piston 31.5mm With Temp Curves 4
