NBR National Skeleton Shock Oil Seal With Shore A80

NBR National Skeleton Shock Oil Seal With Shore A80

    • NBR National Skeleton Shock Oil Seal With Shore A80
    • NBR National Skeleton Shock Oil Seal With Shore A80
    • NBR National Skeleton Shock Oil Seal With Shore A80
    • NBR National Skeleton Shock Oil Seal With Shore A80
  • NBR National Skeleton Shock Oil Seal With Shore A80

    Product Details:

    Place of Origin: China
    Brand Name: XIAYI
    Certification: IATF16949:2016
    Model Number: 20*32*10/15

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: negotiation
    Packaging Details: Standard exporting package
    Delivery Time: Two weeks for new samples
    Payment Terms: T/T, Western Union
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Oil Seal Material: NBR
    Tensile Strength: 14.2MPa Tear Strength: 59.56
    Elongation @ Break: 265% Application: Shock Absorber
    High Light:

    Shore A80 Shock Oil Seal

    ,

    NBR Shock Oil Seal

    NBR rubber oil seal national skeletion with Shore A 80 applied in shock absorber

    Specifications:


    ITEMSPECTEST METHODRESULT
    MAIN LIPø18.20±0.35PROJECTOR18.12-18.16
    DUSTPROOF LIPø18.90±0.30PROJECTOR18.64-18.72
    ODø32+0.3/+0.1CALIPER32.18-32.20
    HEIGHT (1)10±0.20CALIPER10.10-10.16
    HEIGHT (2)15±0.30CALIPER15.20-15.24


    Description:

    Our company is specialized in producing shock absorber parts: oil seal, Piston, Rod Guide, base valve.

    piston rod,  valve disc, stamping parts and other sinter parts.

    Equipment Advantages:

    Automatic Hydraulic Machines

    Automatic Mechanical Pressers

    Vacuum Furnaces

    Sintering furnace

    CNC tooling machine

    Properties:

    ITEMSPECRESULTSTANDARD
    Shore A80±584GB/T531-1999
    Tensile strength≥12MPa14.2GB/T528-1998
    Elongation @ break≥150%265
    Compression deformationMax+5019GB/T7759-1996
    100℃ * 70 h Sample B type
    Tear strength right angle≥3059.56GB/T529-1999
    air oven aging testHardness change point0~+10+3GB/T3512-2001
    Tensile strength change rateMax-20-2
    Elongation @ break change rateMax-50-6
    oil resisitant 100℃ * 70 h (IRM901)Hardness change point-50~+10+3GB/T1690-1992
    Volumn change rate-10~+5+1
    oil resisitant 100℃ * 70 h (IRM903)Hardness change point-10~+5-2GB/T1690-1992
    Volumn change rate0~+20+4
    Brittleness Temperature≤-40℃-40℃GB/T1682-1994
    Rubber standard: HG/T2810-2008 WA8533


    We can also produce different valve seat with different dimensions.

    Some dimensions of compression valve seat are below:

    ØD

    ØD1

    ØD2

    Ød

    H

    H1

    H2

    h

    28

    23.8

    22.1

    16

    11

    4.3

    2.5

    3

    29.8

    25.8

    22.1

    16

    11.5

    4.3

    2.5

    3.5

    33

    28.3

    22.1

    16

    15

    7.3

    3

    4

    34

    29.1

    22.1

    17

    16

    9.5

    3.5

    4

    35

    30.8

    22.1

    16

    15

    7.3

    3

    4


    Sintered Parts
    1. Professional Fe/Cu based powder metallurgy parts manufacturer

    2. Process flow: Mixing--Compacting--Sintering--Re-sizing--ultra sonic cleaning--vacuum oiling--

    Packing

    3. High precision, low noise, wear resistance, energy saving, environment protection, high efficiency and

    low cost.

    4. High quality guarantee: electronic balance to ensure density, test equipments to ensure crushing

    strength, QC and PQC to ensure close tolerance and accurate dimension.

    5. Design ability: Developed different models of gear, bearing, bushing, structural parts etc.      can

    produce according to drawings or samples.

    Applications:

    1. Automotive Part

    2. Motorcycle Part

    3. Pump Parts

    4. Locomotive Parts

    5. Machinery Parts

    6. Tool Parts

    Competitive Advantage:

    High quality guarantee:

    (1) Electronic balance ensure density

    (2) Test equipments to ensure crushing strength

    (3) QC an PQC to ensure close tolerance and accurate dimension

    Design ability:

    Develop different models of gear, bearing, bushing, structural parts etc. can produce according to

    drawings or samples.

    Picture show:

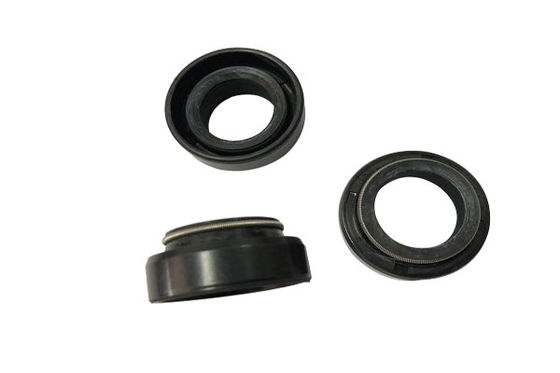

    NBR National Skeleton Shock Oil Seal With Shore A80 0
