Black PTFE Shock Piston Band 2.06-2.19 G/Cm3 Density For Front Car Shocks

MOQ: 2,000pcs
Price: negotiation
Standard Packaging: According to customer’s demand
Delivery Period: Two weeks after payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 50,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
IATF16949:2016
Model Number
Φ25mm
Product Name:
Banded Piston
Filler Of Bands:
Carbon Fiber
Material Of Bands:
PTFE
Color:
Black
Application:
Front Car Shocks
Density Of Bands:
2.06-2.19 G/cm3
Outer Diameter:
24.945-24.995mm
Working Temp.:
260 ℃
Highlight:

banded piston

,

shock absorber parts

Product Description

Elongation @ break more than 200% shock absorber piston with PTFE banded used in shocks





Specifications:

Here is the physical properties of our products
Tensile strength ≥18N/mm2
Carrying capacity ≥15N/mm3
Working temperature -80°C to 260°C
Friction coefficient(dry) ≤0.16
Friction coefficient(oil) ≤0.05





Physical performance for shock piston

tensile strength

More than 18MPa

elongation @ break

More than 200%

shore hardness (bands)

57 - 61

density

2.06 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.2

hardness (sinter piston)

HRB70-90

Technical requirements for sinter piston

Raw material F50 - U3 - 66 or FC - 0208

Steam treatment

OD tested by digital air gauge





Description:



PTFE bands Powder metal piston 25mm shock absorber Suspension Piston for shock absorber



No foreign material or burr for PTFE disc



Product Name:Powder Metal Part - Piston for Shock Absorber



Raw Materials:Fe-C-Cu for sinter piston / PTFE + carbon for PTFE disc



D25XD7.1X14



Sinter material: F50-U3-64 or FC-0208



Composition C=0.6-0.9%, Cu=1.5-3.9%



Density more than 6.4g/cm3



No burrs on holes windows I.D.



Max stress on PTFE 150 BAR



100% test of pistons’ appearance



No sinter powder on the pistons



Processing for sinter piston and PTFE banding



Sinter parts:



Powder blending—Forming—Sintering—Sizing—after treatment—Steam treatment—Oil impregnation



Banding:



Powder blending—PTFE cylinder compression—Sintering—PTFE disc production—repressing—heat



pressing—molding—burring—inspection—packing



Manufacturability



1. Auto Mechanical Press: 50T, 100T, 140T



2. Hydraulic Press: 100T, 315T, 600T, 800T



3. Six sinter furnaces, including one harden Sinter Furnace



4. Heat treatment: Carbonitriding quenching and high frequency quenching



5. Ultrasonic clearing and auto burring



6. In-house tooling making: EDM, wire cutting machine



7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.



Measuring devices



1. Carbon selfur determinator



2. Metallurgic microscope



3. Hydraulic universal material tester



4. Hardness testers



5. Pneumatic measuring instrument



6. Measuring projector



7. Gear testing instrument



8. Electrical profile meter



9. CMM



Applications:



Car or motorbike shock absorbers



Competitive Advantage:



Unique material for shock piston bands



Pistons are produced by automatic banding machine can assure the consistency of the size



Complete testing equipment

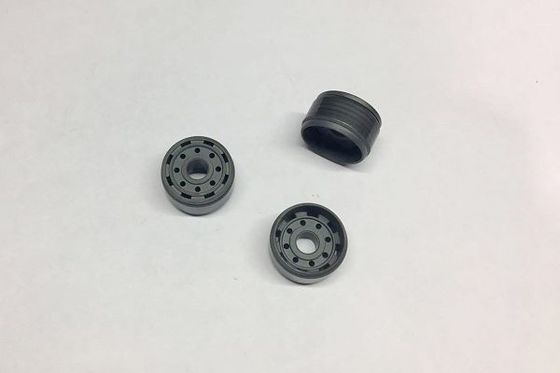

Picture show:

Black PTFE Shock Piston Band 2.06-2.19 G/Cm3 Density For Front Car Shocks 0
