| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | Φ20mm |
| Minimum Order Quantity: | 5,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard exporting package |
| Delivery Time: | ten working days after payment |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 30,000 pcs per week |
| Product Name: | Banded Piston | Density Of Sinter Piston: | More Than 6.5g/cm3 |
|---|---|---|---|
| Material Of Bands: | Fillled PTFE | Application: | Car Shock Absorber |
| Density Of Bands: | 2.06-2.19 G/cm3 | Outer Diameter: | 20mm |
| High Light: | shock absorber piston,shock absorber reconditioning |
||

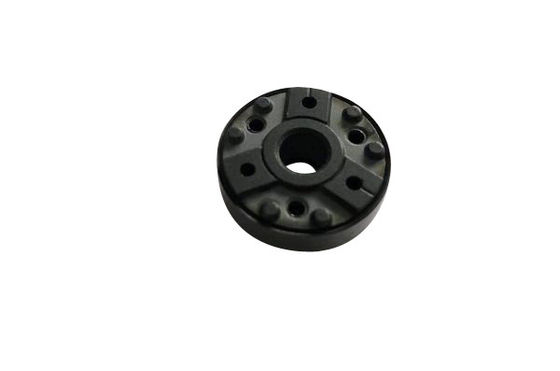

Pass ROHS Test PTFE banded piston of 20mm used in shock absorber from motorcyle
Specifications:
|
Various testing machine |
Density balance |
|
Shore hardness |
|
|
Projector |
|
|
Drawing force testing machine |
|
|
Fatigue testing machine |
|
|
Abrasion testing machine |
|
|
Tensile testing machine |
|
|
Oil immersion testing machine |
|
|
Friction testing machine |
Description:
Size: 20# PISTON
PTFE banding piston
Use in front shock absorbers
XIAYI produces shock absorber pistons with variety types. These shock absorber pistons can be used in different shock absorbers such as Nissan, Hyundai, Buick, Benz and so on.
Our productive capacity:
We have a strong team to research and develop automatic banding machines. The annual capacity can reach more than 20,000,000 nos.
There are plenty of testing machines in our company.
Tensile testing machine which can test tensile strength & elongation @ break according to GB/T 1040.2/1B-2012
abrasion testing machine which can test friction coefficient & abrasion loss according to GB/T3960-1983(1989)
Density balance can test material density to assure the material quality and homogeneous distribution
Shore hardness (D) meter
Projecting machine
We also develop the testing machines by our team workers. For example: blow-off testing machine, fatigue testing machine and friction testing machine.
Here are physical properties of the products:
Tensile strength 16N/mm2
Hardness (D):52-62
Working temperature:-80°C to 260°C
Friction coefficient (dry) ≤0.20
Elongation @ break: ≥150%
Density:2.06-2.19g/cm3
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
XIAYI is a professional company which produces different size and design shock absorber pistons.
XIAYI has a complete set of testing equipment which can control the quality for the material.
Picture show:
