Product Details:
Payment & Shipping Terms:
|
| Product Name: | Piston | Material: | Fe C Cu |
|---|---|---|---|
| Hardness: | 57-61 | Application: | Automotive |
| Property: | Abrasion Resistance | Plating: | Carbonitriding Quenching |
| Production: | Press, Sizing And Sintering | Density: | 6.6g/cm3 |
| High Light: | PM parts,powder metal parts |
||

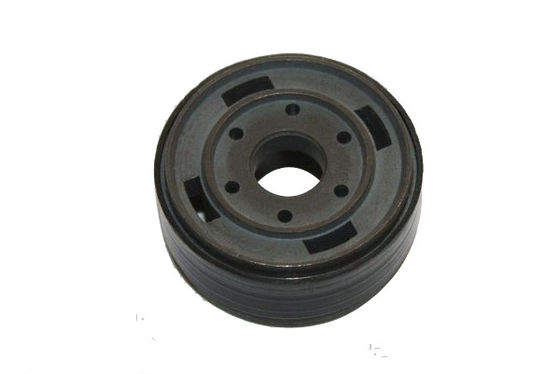

FC 50 - 64 material OD 20 * 6.2 * 18 metal bushing with an open design applied in cars
Specifications:
|
Material |
Aluminum:AL6061,AL6063,AL7075,AL2024 AL5052 |
|
Stainless steel: SS303, SS304, SS316 etc. |
|
|
Brass:HPb59-1,CuZn39Pb1/2/3,CuZn40,C36000,C37710 etc. |
|
|
Bronze: C51000, C52100, C54400 etc. |
|
|
Steel: Q235, 20#, 45# etc. |
|
|
Processing Technical |
CNC machining |
|
CNC milling, CNC |
|
|
turning and EDM Stamping |
|
|
Punching, Drilling |
|
|
Forging, Casting |
|
|
Broaching |
Description:
Material: MPIF FC50-64
Density: 6.6~6.8 g/cm3
Ultimate strength: 280~400 MPa
Yield strength: 220~340 MPa
Hardness: HRB 65~85
Air-tightness: 1.5 MPa
XIAYI is specializing in powder metallurgy, oil bearings, structural parts, gears (sprockets) and different
parts used in automobile and motorcycle. Our company boasts fully-automatic shaping mills, more than
60 finishing machines and about 20 professionals. Our products spread out all over the country, and we
supply components to Korea, America and Japan. Our products are well known at home and abroad with
a good reputation.
1. Professional manufacturer
2. Close tolerance and high density
3. Uniform heat treatment and steam treatment
4. Precise metal-working finishing
5. Higher mechanical performance
1. Process: mixing – compacting – sintering – resizing – cleaning – vacuum oiling -- packing
2. Material: steel, copper, steel copper, bronze, alloy.
3. Produce equipment: 200T, 100T, 60T, 25T, 15T, 10T, 6T, 3T.
4. High precision, 100%quality with competitive price, good abrasion resistance, high efficiency, save
energy.
5. We can make the products according to customers' drawings or requirement.
Surface treatment:
Polishing, zinc plating, nickel plating, chrome plating, powder coating, e-coating, dip coating, phosphate
coating, anodize, PVC powder coating, dichromate plating, decrement plating, etc.
Applications:
The products we produce are widely used in automobile, motorcycle and many other fields like
transmission gear, spur gear, bevel gear, helical gear, sleeve, copper sleeve, sleeve bearing, bushing,
bush, pulley, timing pulley, structural parts, powder metallurgy parts, nut, auto parts, sintered parts, rotor
and stator etc.
Competitive Advantage:
|
With many years in powder metallurgy products |
|
Near Sea Port and Air Port |
|
Passed ISO9001:2008/Rosh/SGS |
|
can offer Good quality and strict delivery time |
|
can offer dimension report, Chemical composition and Mechanical properties |
|
Control material with spectral and thermal analysis equipment (density and processing) |
|
Spectral analysis of raw material |
Picture show:
