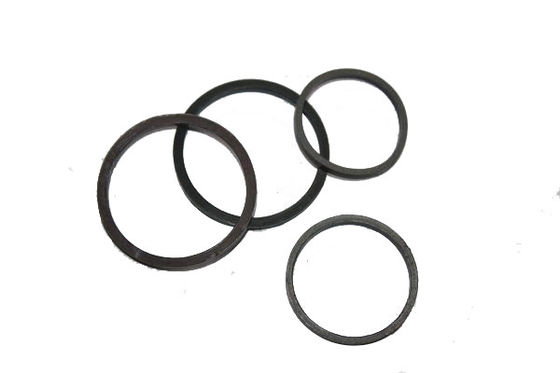

Tensile strength 15MPa PTFE Gasket Ring Work at high temperature condition
  • name
  • name
  • name

Tensile strength 15MPa PTFE Gasket Ring Work at high temperature condition

MOQ: Negotiation
Price: Negotiation
Standard Packaging: Standard Export Wooden Case
Delivery Period: 7-15 working days
Payment Method: L/C, T/T
Supply Capacity: 1000 units per month
Detail Information
Product Description
Detail Information
Place of Origin
NINGBO,CHINA
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
guide ring
Part Name:
Guide Ring
COLOR:
CUSTOMIZED
Application:
Shock Absorber
Material:
PTFE Plus Fillers
Temp:
-180~260
Density:
2.1-2.2
Highlight:

350RPM 5 Star Motors

,

20MPa 5 Star Motors

,

NIM8-900

Product Description

Part Name: Proper Displacement Injection Molding Five Star Motor


Especially used in petroleum and coal mining, plastic machinery

Can also be used in Hydraulic transmission of mining, construction, engineering machinery, lifting and transportation equipment, metallurgy, marine machinery, geological drilling and other machinery.

NIM series low-speed and high-torque hydraulic motors adopt star-shaped arrangement of plunger and crank connecting rod mechanism to convert hydraulic energy into rotating mechanical energy with the help of oil distribution machinery. They have various advantages such as low noise, large starting torque, low speed stability, high efficiency, long life, variable speed range, compacted structure and other characteristics. Can be applied in sol motor of injection molding machine, 5-star oil motor of mine, marine hydraulic motor.

Main features:
1. This series of hydraulic motors is designed as a static pressure balance structure between connecting rod and crankshaft motion, can get good lubrication during friction.
2. As the decrease of heat and friction loss, mechanical and starting efficiency of the motor are improved, which increases the working pressure.
3. The crankshaft of this series adopts split structure, which improves the service life of the crankshaft.
4. The key components of this series are made of special materials and heat treatment process, which effectively improves the service life of the motors.

We can design, manufacture and transform various standard, non-standard hydraulic system, production standard, non-standard cylinder, integrated circuit board and so on.

Technical Parameters:



Model



Displacement

mL/r

Pressure

MPa

Torque



Speed

r/min

Weight

Kg
Rated pressure Max pressure

Rated torque

N.m

Unit theoretical torque

N.m/MPa
NIM8-900 889 20 25 2629 131 3-350 72



Detail drawings and performance curves:

 Tensile strength 15MPa PTFE Gasket Ring Work at high temperature condition 0



Tensile strength 15MPa PTFE Gasket Ring Work at high temperature condition 1



Tensile strength 15MPa PTFE Gasket Ring Work at high temperature condition 2



Tensile strength 15MPa PTFE Gasket Ring Work at high temperature condition 3
Tags:

Piston Guide Ring,

PTFE components,

PTFE rings
