| Place of Origin: | NINGBO,CHINA |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | ring gasket |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |

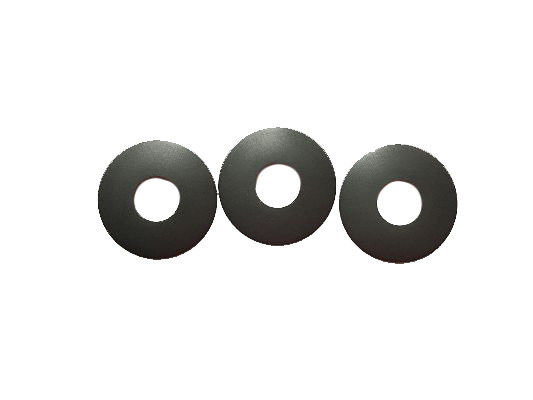

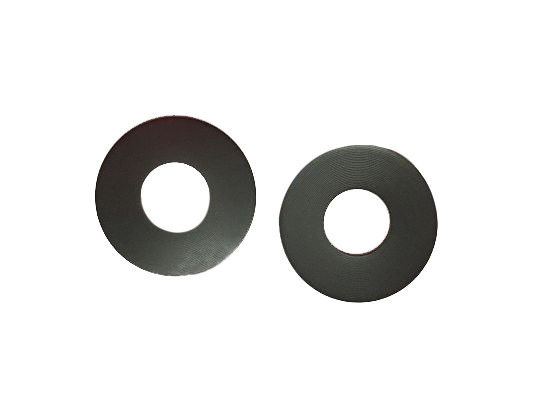

| Part Name: | Ring Gasket | COLOR: | Black |
|---|---|---|---|
| Sinter Temp: | 375 | Weight: | 1.05g |
| Hardness: | 57-62 | Dimensions: | OEM |
| Highlight: | Hoist Hydraulic Speed Reducer,360° Rotation Hydraulic Speed Reducer,7m Hydraulic Speed Reducer |
||
Part Name: 360° Rotation Angle Hoist Hydraulic Speed Reducer For Rotary Drive
Part Model: D302PL1 series
Especially used in hydraulic aerial cage
Applications:
Hydraulic transmission of cement pump truck, marine machinery, rotary reducer, port, mining, agriculture, forestry, metallurgy and other machinery.
Technical parameters:
| Type | hydraulic aerial cage |
| Max working altitude(m) | 16 |
| Working bucket load(kg) | 200 |
| Working arm form | Three folding arms |
| Max operating range(m) | 7 |
| Max lifting height(m) | 8 |
| Lifting weight(kg) | 1000 |
| Rotation angle | 360° |
| Hydraulic leg(nos) | 4 |
| Total weight(kg) | 5390 |
Aerial working vehicle field: aerial working vehicle is an important application field of rotary drive. Generally speaking, aerial working vehicle requires high safety factor of the host machine. The high safety of rotary drive is an important factor for the majority of users to choose it as the accessories of aerial working platform. On the other hand, turbine worm transmission has a large transmission speed ratio, which can improve the safety factor of the host, and also omit a set of turbine worm reducer for the host, thus reducing the manufacturing cost of the host.
Detail drawings:
|
|
 |
Other pictures:
|
