PTFE Banded Powder Metallurgy Sintered Pistons With Steam Treatment For Shock Absorbers

PTFE Banded Powder Metallurgy Sintered Pistons With Steam Treatment For Shock Absorbers

  • PTFE Banded Powder Metallurgy Sintered Pistons With Steam Treatment For Shock Absorbers
  • PTFE Banded Powder Metallurgy Sintered Pistons With Steam Treatment For Shock Absorbers
  • PTFE Banded Powder Metallurgy Sintered Pistons With Steam Treatment For Shock Absorbers
PTFE Banded Powder Metallurgy Sintered Pistons With Steam Treatment For Shock Absorbers
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: Φ45mm
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Packed in plastic box one by one
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month
Contact Now
Detailed Product Description
Product Name: Shock Pistons Material Of Sinter Parts: Fe - C - Cu
Material Of Bands: Filled PTFE Color: Black
Filler: MoS2 / Carbon Density Of Bands: 2.06-2.19 G/cm3
Outer Diameter: 45mm
High Light:

Metallurgy Sintered Banded Piston

,

PTFE Banded Powder Shock Pistons

,

Steam Treatment Banded Piston

PTFE banded Powder Metallurgy Sintered Pistons With Steam Treatment For Shock Absorbers





Our company can supply components with PTFE bushing and PTFE tape, that allows to begin assembling process immediately after receiving goods produced by XIAYI.



To date, XIAYI’s facilities allow to producing up to 2,000,000 additional shock absorber parts per month; and if necessary, this number can be increased by acquiring new equipment. One of our advantages as a manufacturer of shock absorber components is price/quality ratio – we offer competitive prices and provide high quality in full accordance with customer’s drawings.


The quality of products supplied by XIAYI is ensured at every stage of production – from planning to packaging and delivery. Control is carried out at three levels: at factory in accordance with internal standards; by head office expert; by independent expert organizations, such as SGS, with appropriate certificate, by prior arrangement with client. This ensures stable product quality and customer’s confidence while cooperation with us.



Specifications:

Physical performance for shock pistons

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness (bands)

57 - 61

density

2.15 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.3

hardness (sinter piston)

HRB65-85

Different fillers

carbon fiber

glass fiber

graphite

Molybdenum disulfide

carbon



Description:



Filled PTFE banded piston, shock absorber pistons, PTFE piston ring can stand 10,000,000 cycles fatigue test



Size: D45XD10X14

Nether OD: 44.94-44.98mm

Upper OD: 45.02-45.32mm

Banded height: 12mm

Density of sinter piston: 6.5g/cm3

Steam treatment, hardness HRB80-110



Material: Multi-level powdered metal components on iron, stainless and copper base.



Using area for powder metallurgy parts:

Major products are used in automobile and motorcycles parts, structure components, hand tool machine parts, food machine parts, office machine parts, sewing machine parts, farming machine and stainless parts, oil pumps parts, rotors, gears, oil impregnated bearing, various lock ware and other hardware supplies.



Xia Yi company product suspension pistons, shock absorber pistons and other sintered parts from shock absorbers. The products include rod guider, piston, valve seat and other powder metallurgy parts.



We can offer our suspension pistons with aggressive pricing, superior design and engineering, excellent quality and unparalleled service and delivery.



Process of the piston banding

1. POWDER BLENDING

2. PTFE SYLINDER COMPRESSION

3. SINTERING

4. PTFE DISC PRODUCTION

5. PREPRESSING

6. HEAT PRESSING

7. MOLDING

8. DEBURRING

9. INSPECTION

10. PACKAGE

PTFE Banded Powder Metallurgy Sintered Pistons With Steam Treatment For Shock Absorbers 0



Applications:



Used in car or motorbike shock absorber



Competitive Advantage:



1. XIAYI is a professional company which produces different size and design of shock absorber pistons.



2. XIAYI has a complete set of testing equipment which can control the quality for the material.



3. Staffs in XIAYI have plenty of experience for producing shock absorber pistons.



Q&A

Q1. Are you a Manufacture or Trading Company?
A1:We are manufacturer and we have licence to export auto parts, we have been in this line for many years.

Q2. What kinds of parts can you supply?
A2: 1.Shock absorber 2. Coilover 3. Oil seal 4. Rubber parts 5. Powder metallurgy parts and others.

Q3. What is your production Lead Time?
A3:5 working days for goods in stock ,15-45 days for mass products, about 45 days for new parts need to develop molds.


Q4. What is your payment way?
A4:We accept payment by western union, T/T, L/C. Normally, 30% deposit in advance, 70% balance before shipment.

Q5. Dispatch Port ?
A5:Guangzhou, ningbo, shanghai and others.


Q6. What other service can you offer?
A6:OEM service, welcome to send us the design drawing to develop a new product line.
Customized service, we can help you to design your packing.


Q7. How can I get the warranty?
A7:During the warranty period,any products damaged because of the quality problem can be changed for free.
We provide 1 years warranty start from the purchase date,but it does not cover damages result from any of the following situations:
Racing accidents
Improper installation
Disassembly or modifications



Picture show:

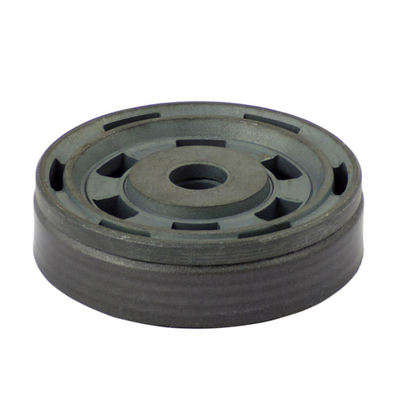

PTFE Banded Powder Metallurgy Sintered Pistons With Steam Treatment For Shock Absorbers 1
