| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | Φ31.05mm |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | According to customer’s demand |
| Delivery Time: | Two weeks after payment |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 30,000 pcs per month |
| Product Name: | Sinter Piston | Filler Of Bands: | Customized |
|---|---|---|---|
| Color: | Black | Application: | Car Rear Shocks |
| Density Of Bands: | 2.15 G/cm3 | Outer Diameter: | 46mm |
| High Light: | Heat Treatment Shock Absorber Piston,Truck Shock Absorber Piston,46mm Sinter Shock Absorber Parts |
||
Heat Treatment Sinter Pistons With Density 6.8 g/cm3 For Truck Shocks
Shock absorber parts use metal powder as raw material, through forming and sintering, manufacturing metal materials, composite materials and various types of products
Powder metallurgy technology can be directly made into porous, semi-compact or full-compact materials and products, such as Shock absorber piston, rod guide, base valve, valve body, etc., which is a less cutting process.
Specifications:
|
Physical performance for shock piston |
tensile strength |
More than 18MPa |
|
elongation @ break |
More than 160% |
|
|
shore hardness (bands) |
57 - 61 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.2 |
|
|
hardness (sinter piston) |
HRB60-80 |
|
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
|
Steam treatment |
||
|
OD tested by digital air gauge |
||
Description:
XIAYI company is specialized in design and producing PTFE banded shock absorber pistons,at the same
time,we design and manufacture automatic skirting machines.
Till now we have produced so many different types of shock absorber pistons with the diameter from
ø20mm~ø50mm.We make PTFE discs and toolings in our own factory,can control the quality effectively
and also can save much time.
D46 PISTON:
RAW MATERIAL OF SINTER PARTS:IRON BASED,IRON & COPPER BASED,COPPER
BASED,STAINLESS STEEL BASED
The detail information of the pistons:
1.Used in front shock absorbers
2.When temperature reach 100℃,expansion ratio ≤+/-1%
3.Using the testing ring,with the shock absorber oil,max frictional force is 15N
4.Piston can get through freely of the certain size of cylinder with 2N force
5.PTFE tensile strength ≥18MPa,elongation @ break ≥200%
6.Tight integration between piston and PTFE disc.PTFE won't fall off when working in the cylinder.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
1. Consistency in size
2. Infrared ray detect the diameter
3. Strict control plan
4.100% testing for outer diameter

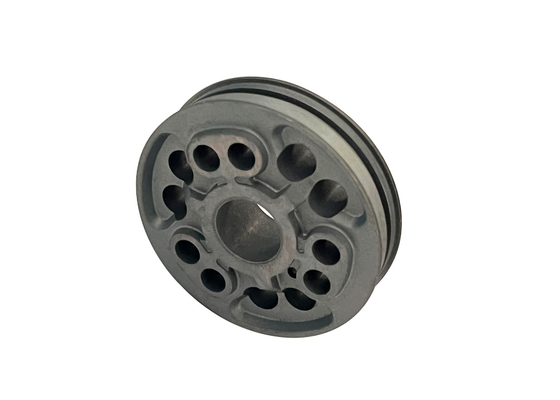

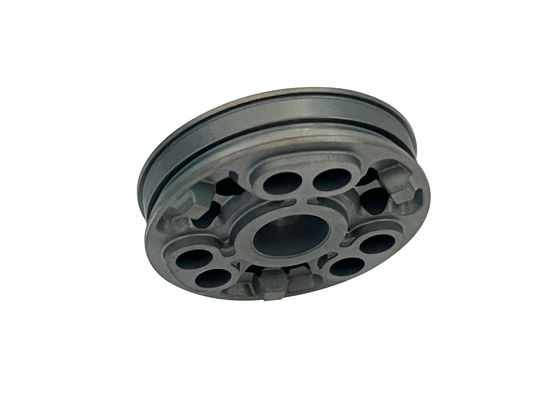

Picture show:
 |
|
