PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber

MOQ: 2,000pcs
Price: negotiation
Standard Packaging: According to customer’s demand
Delivery Period: One week after payment
Payment Method: T/T, Western Union
Supply Capacity: 300,000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
IATF16949:2016
Model Number
Φ31mm
Product Name:
Banded Piston
Filler Of Bands:
Carbon Fiber
Material Of Bands:
Filled PTFE
Color:
Black
Application:
Car Shock Absorber
Density Of Bands:
2.14 G/cm3
Outer Diameter:
31mm
Working Temp.:
260 ℃
Highlight:

Sinter Banded Piston

,

Shock Absorber Piston 65 HRB

,

Shock Absorber Banded Piston

Product Description

PTFE Banded Sinter Piston With Hardness 65HRB Of Steam Treatment For Shocks





Our company produce shock absorber pistons with variety types and sizes. These shock absorber



pistons can be used in different shock absorbers such as Nissan, Hyundai, Buick and so on.



We have a strong team to research and develp automatic machines, the annual capacity can reach more



than 20, 000, 000 pcs.



Specifications:







Details for shock piston









many holes for oil bleed

lip design can according to the customer's demand

good seals of PTFE material

horn mouth design for piston

in-house tooling making: EDM, wire cutting machine

custom metallurgical properties

design and sale all types of pistons

wear and corrosion resistance



Description:



D31XD7.1X14



Sinter Material similar as F50-U3-64
C: 0.6-0.9%

Cu:1.5-3.9%

Density more than 6.4g/cm3

Hardness for sinter parts: HRB70-90


We can use the following material to produce PTFE discs:



We can add bronze powder or carbon fiber or graphite or other fillers in PTFE


Lip design: We can design no lip, single lip or double lip according to the customer’s demand.



Xia Yi produces shock absorber pistons with many different types. These pistons can be used in front or



rear shock absorbers.



We have a strong technical team to research and develop automatic skirting machines. Only need to put



PTFE discs and sinter pistons on table, the machine will do the job to combine them together and finally



get the finished PTFE banded pistons.



Applications:



Car or motorbike shock absorbers



Competitive Advantage:



Unique material for shock piston bands



Pistons are produced by automatic banding machine can assure the consistency of the size



Complete testing equipment

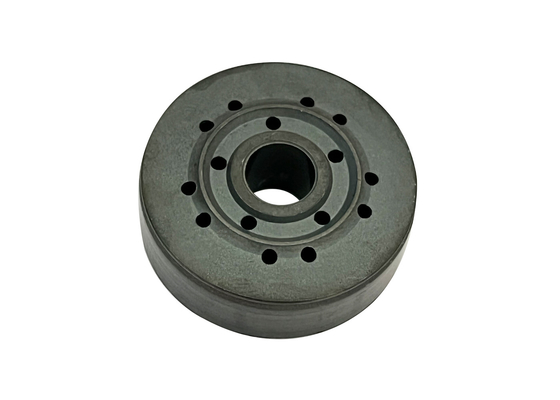

Picture show:

PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber 0



PTFE Sinter Banded Piston With Hardness 65 HRB Steam Treatment For Shock Absorber 1
