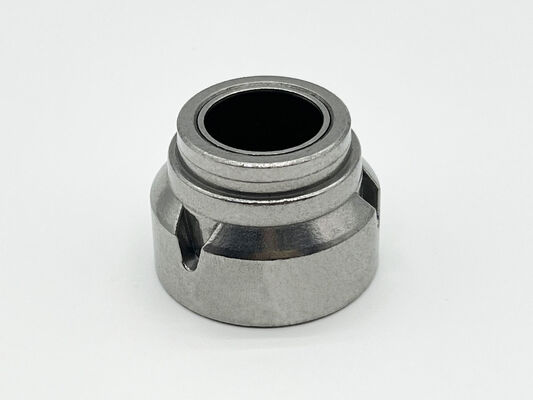

Optimized Rod Alignment Shock Absorber Guide for Hydraulic Dampers
  • name
  • name
  • name
  • name
  • name

Optimized Rod Alignment Shock Absorber Guide for Hydraulic Dampers

MOQ: 1,000pcs
Price: Can be discussed
Standard Packaging: Standard export package
Delivery Period: About 2-3 weeks
Payment Method: L/C,T/T,D/A,D/P
Supply Capacity: 100000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Ningbo, China
Brand Name
XIAYI
Certification
IATF16949:2016
Model Number
30.5mm
Hardness:
HRB70-90
Product Name:
Rod Guide
Treatment:
Steam
Material:
Fe - C - Cu
Rust Resistance:
Good
Application:
Shock Absorber
Product Description
Optimized Rod Alignment Shock Absorber Guide for Hydraulic Dampers

Model: 30.5mm Rod Guide | Brand: XIAYI | Certification: IATF16949:2016

Engineered as a precision suspension component, this sintered shock absorber rod guide maintains exact rod alignment within hydraulic damper assemblies. Manufactured from Fe-C-Cu powder metallurgy material with steam treatment finishing, it delivers the structural integrity and dimensional stability required for consistent shock absorber performance across the full service interval.

Technical Specifications
Model Number
30.5mm
Material
Fe - C - Cu
Hardness
HRB 70 - 90
Net Weight
202 g
Press Capacity
80 - 150 T
Surface Treatment
Steam Treatment
Rust Resistance
Excellent
Certification
IATF16949:2016
Compatibility
Universal
Place of Origin
Ningbo, China
Product Overview

The shock absorber rod guide is a structural bearing element positioned at the top of the damper body. Its primary function is to maintain precise linear alignment of the piston rod as it cycles through compression and rebound strokes. Any deviation in rod guidance leads to uneven seal wear, oil leakage, and eventual damper failure. XIAYI's sintered rod guide addresses these challenges through advanced powder metallurgy manufacturing and stringent quality control.

The Fe-C-Cu material composition offers an optimized balance of machinability, wear resistance, and cost-effectiveness. After sintering, each guide undergoes steam treatment — a controlled oxidation process that forms a uniform Fe3O4 (magnetite) layer on all surfaces. This layer provides both corrosion resistance and a microscopically porous structure that retains lubricating oil, reducing startup friction and extending component life.

Key Features & Benefits
  • Precision Sintered Body: Pressed at 80-150T and sintered under controlled atmosphere, achieving consistent density distribution and dimensional accuracy within tight tolerances for reliable rod-to-guide clearance.
  • Optimized Material Formula: Fe-C-Cu alloy provides HRB 70-90 hardness with sufficient ductility to absorb side loads without cracking, unlike fully hardened steel alternatives.
  • Steam Treatment Finish: Forms a 0.004-0.005 mm magnetite layer that doubles as rust protection and an oil-retaining surface, minimizing dry-start friction during initial damper operation.
  • Universal Compatibility: The 30.5 mm design supports broad vehicle application coverage for passenger cars and light commercial vehicles, reducing inventory complexity for distributors.
  • IATF16949:2016 Certified: Full PPAP documentation, process capability studies, and traceable batch records support OEM and Tier-1 supplier quality requirements.
Common Assembly & Performance Challenges Solved
"The rod guide in our current supply wears out prematurely, causing the shock absorber rod to wobble."
XIAYI rod guides are sintered with uniform density distribution (6.4-6.8 g/cm³) and controlled porosity. The consistent material structure eliminates soft spots that cause localized accelerated wear, ensuring even wear distribution across the guide bore throughout the damper's service life.
"We experience high rejection rates at incoming inspection due to inconsistent guide dimensions."
Our IATF16949:2016 production system maintains process capability (Cpk ≥ 1.33) for all critical dimensions. Each batch undergoes CMM inspection with statistical process control, delivering guides that meet drawing specifications consistently — lot after lot.
"After steam treatment, some guides develop surface rust within weeks of storage."
XIAYI's 2-hour high-temperature steam treatment process produces a dense, well-adhered Fe3O4 layer with proven corrosion resistance. Vacuum oil impregnation follows the steam process, filling sub-surface pores with rust-preventive oil for long-term storage protection.
"Smaller suppliers cannot provide PPAP or traceability documentation required by our quality system."
Every XIAYI rod guide shipment includes full traceability documentation: material certificates, dimensional reports, hardness test data, and process parameter records. PPAP Level 3 documentation is available for new part approvals.
"Our current guide supplier has 45-day lead times that disrupt our production scheduling."
With in-house tooling design and fabrication, XIAYI maintains standard delivery times of 2-3 weeks. Our automated pressing lines produce 100,000+ pieces per month, ensuring volume capacity for both regular production and urgent orders.
Manufacturing Process

Each rod guide follows a precise 10-stage manufacturing sequence under IATF16949:2016 process controls:

1. Powder Blending 2. Compacting (80-150T) 3. Sintering 4. Sizing/Calibration 5. Deburring 6. Steam Treatment 7. Oil Impregnation 8. Final Inspection 9. Packaging 10. Shipment

Quality Inspection Capability
EquipmentInspection Purpose
Coordinate Measuring Machine (CMM)Dimensional verification of bore size, OD, and runout
Metallurgical MicroscopeMicrostructure analysis and porosity evaluation
Digital Hardness TesterSurface and core hardness verification (HRB scale)
Electronic BalanceDensity measurement and material consistency check
Universal Material TesterCrushing strength and mechanical property validation
Optical ProfilometerSurface roughness and steam layer thickness measurement
Carbon Sulfur DeterminatorChemical composition verification of Fe-C-Cu alloy
Application Coverage
  • Passenger car front and rear MacPherson strut assemblies
  • Light commercial vehicle twin-tube shock absorbers
  • Motorcycle front fork and rear mono-shock dampers
  • Aftermarket and performance suspension upgrade kits
  • Industrial hydraulic cylinder guide bushings
Frequently Asked Questions
Q: What is the minimum order quantity for this rod guide?
The standard MOQ is 1,000 pieces per order. For prototype validation or trial runs, smaller quantities can be arranged upon request with adjusted pricing.
Q: Can you produce rod guides with different dimensions or material compositions?
Yes, XIAYI offers full OEM customization. We can adjust bore diameter, outer diameter, height, and material formula (including Fe-Cu-Ni, Fe-Cu-C, and other alloy variants) based on your technical drawings. In-house tooling design ensures fast mold turnaround of approximately 25 days.
Q: Do you provide samples for testing before bulk order?
Sample rod guides are available for customer validation. We produce samples to your exact specifications and provide dimensional reports, hardness data, and material certificates with each sample shipment.
Q: What is your typical production lead time?
Standard delivery is 2-3 weeks from order confirmation. For new tooling projects, add approximately 25 days for mold design and fabrication. Rush orders can be prioritized based on production schedule availability.
Q: How do you package the rod guides to prevent damage during transit?
Rod guides are individually separated in compartmentalized cartons with protective dividers, then packed into reinforced wooden cases or pallets. This double-layer protection prevents contact damage and surface corrosion during international shipping.
Q: Is the Fe-C-Cu material compliant with environmental regulations?
Yes. Our Fe-C-Cu material formulation complies with RoHS and REACH requirements. The steam treatment process is environmentally friendly, producing no hazardous chemical waste. Full material compliance documentation is available upon request.
Q: What differentiates XIAYI rod guides from generic sintered components?
Three factors: (1) IATF16949:2016 certified production with full process traceability, (2) in-house tooling and automated pressing lines for consistent quality at scale, and (3) a dedicated R&D team that can optimize material formulations and guide geometry based on your specific damper performance targets.
Customization Options

XIAYI provides comprehensive product customization for the 30.5mm rod guide platform:

Customization ParameterAvailable Options
Bore DiameterCustom to drawing specifications
Outer DiameterCustom to drawing specifications
Guide HeightCustom to drawing specifications
Material FormulaFe-C-Cu, Fe-Cu-Ni, Fe-C, other alloy variants
Hardness RangeCustomizable from HRB 50 to HRB 110
Surface TreatmentSteam treatment, zinc plating, manganese phosphate
DU Bushing InsertAvailable as sub-assembly with PTFE-lined bushing
PackagingStandard export carton, custom labeling, retail-ready packaging
Why Choose XIAYI
  • Automotive-Grade Manufacturing: IATF16949:2016 certified facility with full APQP, FMEA, MSA, PPAP, and SPC implementation.
  • Vertical Integration: In-house powder blending, pressing, sintering, steam treatment, and tooling fabrication eliminates supplier dependencies and maintains quality control at every stage.
  • Scalable Capacity: Over 20 hydraulic presses (80T to 800T) with monthly output exceeding 100,000 pieces for this rod guide platform.
  • Proven Export Record: Components regularly shipped to Japan, Korea, North America, and European markets with consistent quality feedback.
  • Technical Partnership: Our engineering team provides design-for-manufacturability reviews, material selection guidance, and testing support at no additional cost.

Request a quotation today. Send your technical drawings or dimensional requirements to our sales team for prompt pricing and feasibility assessment. Free samples available for qualified buyers.
