Place of Origin: | China |
Brand Name: | XIAYI |
Certification: | ISO9001:2008 |
Model Number: | Φ32mm |
Minimum Order Quantity: | 2,000pcs |
---|---|
Price: | negotiation |
Packaging Details: | According to customer’s demand |
Delivery Time: | One week after payment |
Payment Terms: | T/T, Western Union |
Supply Ability: | 300,000pcs per month |
Product Name: | Banded Piston | Filler Of Bands: | Carbon Fiber |
---|---|---|---|
Material Of Bands: | Filled PTFE | Color: | Black |
Application: | Car Shock Absorber | Density Of Bands: | 2.15 G/cm3 |
Outer Diameter: | 31.98mm | Working Temp.: | 260 ℃ |
Highlight: | banded piston,shock absorber parts |
32mm inclined holes Damper Piston with good tensile strength for car shock absorber
Specifications:
Material: MPIF FC-0205
density: No less than 6.8g/cm3
Hardness: 60-100 HB
Steam treatment: 2H high temp steam holding time
Thickness of Fe3O4: 0.004-0.005mm
Die tooling design and making in house
Physical performance for shock piston |
tensile strength |
More than 18MPa |
elongation @ break |
More than 160% |
|
shore hardness (bands) |
57 - 61 |
|
density |
2.06 – 2.19 g/cm3 |
|
wear |
Less than 50mg |
|
friction coefficient |
Less than 0.2 |
|
hardness (sinter piston) |
HRB60-80 |
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
With steam treatment |
||
OD tested by digital air gauge |
||
Wave design for PTFE bands |
Description:
Special design 32# banded PTFE shock piston for samples according to drawings
D32XD8X13
4 pairs of holes design
Inclined holes design
Special design for the flared lip (wave type)
Export to Japan
We can use the following material to produce PTFE discs:
We can add bronze powder or carbon fiber or graphite or other fillers in PTFE
Lip design: We can design no lip, single lip or double lip according to the customer’s demand.
Xia Yi produces shock absorber pistons with many different types. These pistons can be used in front or
rear shock absorbers.
We have a strong technical team to research and develop automatic skirting machines. Only need to put
PTFE discs and sinter pistons on table, the machine will do the job to combine them together and finally
get the finished PTFE banded pistons.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Unique material for shock piston bands
Pistons are produced by automatic banding machine can assure the consistency of the size
Complete testing equipment

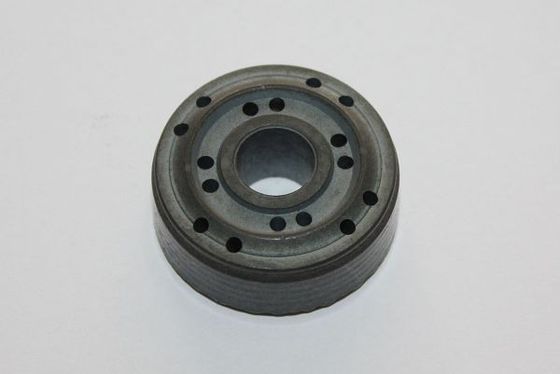

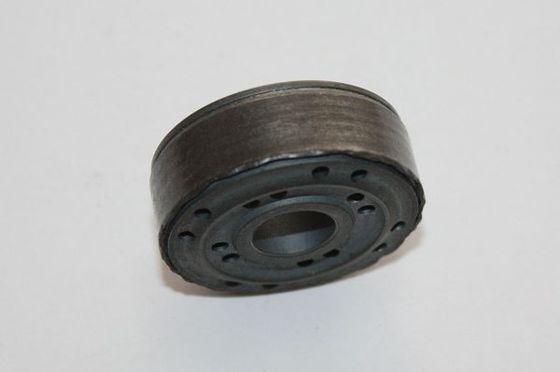

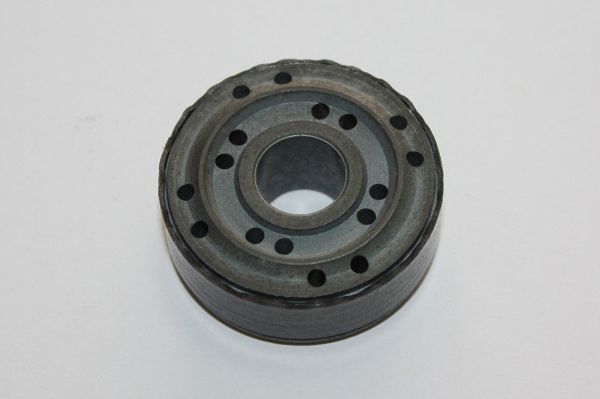

Picture show:
