High temperature resist and no oil leak shock piston , Filled PTFE damper piston

High temperature resist and no oil leak shock piston , Filled PTFE damper piston

High temperature resist and no oil leak shock piston , Filled PTFE damper piston
High temperature resist and no oil leak shock piston , Filled PTFE damper piston
High temperature resist and no oil leak shock piston , Filled PTFE damper piston
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: IATF16949:2016
Model Number: Φ32mm
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs
Price: negotiation
Packaging Details: Packed in plastic box one by one
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month
Contact Now
Detailed Product Description
Product Name: Shock Pistons Material Of Sinter Parts: Fe - C - Cu
Material Of Bands: Filled PTFE Color: Black
Filler: MoS2 / Carbon Density Of Bands: 2.06-2.19 G/cm3
Outer Diameter: 32.12-32.22mm
Highlight:

shock absorber piston

,

shock absorber reconditioning

high temperature resist and no oil leak shock pistons of different fillers





Specifications:

Physical performance for shock pistons

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness (bands)

57 - 61

density

2.15 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.3

hardness (sinter piston)

HRB65-85

Different fillers

carbon fiber

glass fiber

graphite

Molybdenum disulfide

carbon



Description:



Filled PTFE banded piston, shock absorber pistons, PTFE piston ring can stand 10,000,000 cycles fatigue test



Size: D32XD8X14

Nether OD: 31.94-31.98mm

Upper OD: 32.12-32.22mm

Banded height: 10mm

Density of sinter piston: 6.5g/cm3

Steam treatment, hardness HRB80-110



Material: Multi-level powdered metal components on iron, stainless and copper base.



Using area for powder metallurgy parts:

Major products are used in automobile and motorcycles parts, structure components, hand tool machine parts, food machine parts, office machine parts, sewing machine parts, farming machine and stainless parts, oil pumps parts, rotors, gears, oil impregnated bearing, various lock ware and other hardware supplies.



Xia Yi company product suspension pistons, shock absorber pistons and other sintered parts from shock absorbers. The products include rod guider, piston, valve seat and other powder metallurgy parts.



We can offer our suspension pistons with aggressive pricing, superior design and engineering, excellent quality and unparalleled service and delivery.



Process of the piston banding

1. POWDER BLENDING

2. PTFE SYLINDER COMPRESSION

3. SINTERING

4. PTFE DISC PRODUCTION

5. PREPRESSING

6. HEAT PRESSING

7. MOLDING

8. DEBURRING

9. INSPECTION

10. PACKAGE



Applications:



Used in car or motorbike shock absorber



Competitive Advantage:



1. XIAYI is a professional company which produces different size and design of shock absorber pistons.



2. XIAYI has a complete set of testing equipment which can control the quality for the material.



3. Staffs in XIAYI have plenty of experience for producing shock absorber pistons.



Picture show:

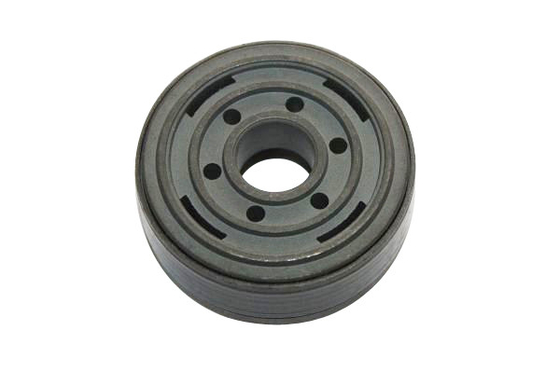

High temperature resist and no oil leak shock piston , Filled PTFE damper piston 0



High temperature resist and no oil leak shock piston , Filled PTFE damper piston 1
