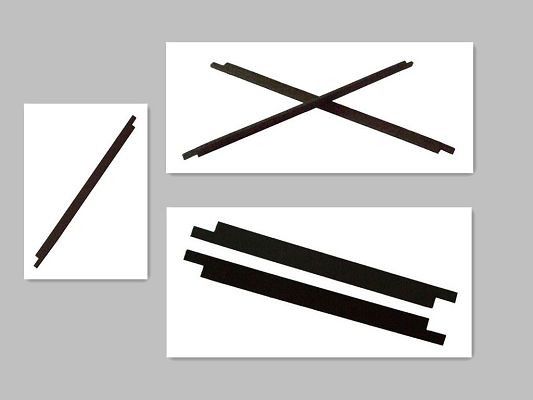

High temperature resistance PTFE strip / PTFE piston rings banded with 40% bronze

High temperature resistance PTFE strip / PTFE piston rings banded with 40% bronze

  • High temperature resistance PTFE strip / PTFE piston rings banded with 40% bronze
High temperature resistance PTFE strip / PTFE piston rings banded with 40% bronze
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: Customized PTFE bands
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs
Price: negotiation
Packaging Details: plastic PP bag inside and carton outside
Delivery Time: two weeks for new samples
Payment Terms: T/T, Western Union, L/C
Supply Ability: 150,000pcs per month
Contact Now
Detailed Product Description
Product Name: PTFE Guide Strip Material: PTFE + Bronze Compound
Application: Hydraulic Cylinder Style: Sealing Strip
Size: Customized Production: Punch Machine
Yield Strength: 23MPA Coefficient Of Friction: 0.05-0.10
High Light:

PTFE Band

,

piston band





High temperature resistance PTFE piston rings banded with 40% bronze





Specifications:



1. Unusually high wear resistance.



2. High resistance against extrusion.



3. Perfect sealing performance.



4. Easy installation.



5. Good temperature tolerance.



6. Double lips prevent dust pollution.





Description:



Dimension: 122mmX6.25mmX1.60mm



Material: PTFE+40% bronze



Piston ring can band together with sinter piston, used in different kinds of shock absorbers.



Good seal piston ring used together with sinter piston, filler can be carbon, glass fiber and others, apply



in shocks



Different size and tolerance is available.



Different filler is available



Can supply our stock samples for free



Parts are exported to foreign market.



Can offer ROHS and SGS report if needed



Features:



All sizes will be produced according to customers' requirement



Different materials can be added, such as glass fiber, graphite, carbon and so on



Improve compression strength, thermal conductivity and abrasion resistance.





Application data



Inspection item

Unit

Data

Bulk density

G/CM3

 1.90(±0.10)-for sheet; 2.30(±0.20) for PTFE seal

Color



Green, Blue, White, Black

Pressure Limit

Bar

40

Temperature Limit

260

PH Range



0-14

PTFE Seal thickness

MM

 0.5(±0.10)/side

Gasket Thickness

MM

2(±0.10) or as customers' request




Advantages:

It has a low coefficient of friction and lubrication is not always necessary.

PTFE can work together with other materials like fiberglass or copper to get a better mechanical property.

When PTFE is expanded properly, the fiber changes from hair-like structure to a web-like structure and



become much more stronger while it is much lighter.





Applications:



It is widely used as flange sealing to joint where strong acid or alkaline or other corrosive.





Competitive Advantage:



Prevents metal to metal scoring and prolongs equipment life



Reduces radial movement on both rams and pistons to extend seal life



PTFE lubricant allows for lower coefficient of friction between mating surfaces



Retrofits existing bearing groves and eliminates unnecessary modifications



Available in common groove width dimensions, minimizing inventory costs



Strips can be cut to size from the coil
