High temperature resist and no oil leak Shock Absorber Piston with 6 square grooves

MOQ:	1,000pcs
Price:	negotiation
Standard Packaging:	1. Print mark logo, Anti-rust oil 2. Plastic films, Plastic bag or paper box 3. Carton + Pallet
Delivery Period:	Ten working days depend on order quantity
Payment Method:	T/T, Western Union, L/C
Supply Capacity:	500,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XIAYI

Certification

ISO9001:2008

Model Number

piston

Product Name:

Piston

Application:

Shock Absorber

Material 1:

Fe-C-Cu

Material 2:

Filled PTFE

Friction Coefficient:

Less Than 0.2

Density:

Hardness:

Mold Time:

7-10 Days

Highlight:

oilless bushing

sintered bronze bush

Product Description

High temperature resist and no oil leak Shock Absorber Piston with 6 square grooves

Specifications:

Physical performance for shock piston	tensile strength	More than 15MPa
	elongation @ break	More than 200%
	shore hardness (bands)	57 - 61
	density	2.15 – 2.19 g/cm³
	wear	Less than 50mg
	friction coefficient	Less than 0.3
	hardness (sinter piston)	HRB65-85
Different fillers	carbon fiber
	glass fiber
	graphite
	Molybdenum disulfide
	carbon

Description:

High temperature resistance, no oil leak, 4 square grooves design auto Shock Pistons

D29.5 * D8 * 18, Sintered Parts for shock piston

Our company produces different kinds of sintered parts. These sintered part include pistons, foot valve,

rod guider, valve base and so on.

Can band PTFE on outer diameter of pistons

Can do slide resistance test according to the customer's demand

Piston should slide down uniformity both in positive and contrary direction, no Damping stagnation

Test velocity is 3mm/min, Static strength damage: 11.27KN

Radial crushing strength>5000N

Net weight is 38.16g

Properties of sintered parts

Material: MPIF FC-0205

Density: Not less than 6.8g/cm3

Hardness: 60-100 HB

Steam treatment: 2H high temp steam holding time

Thickness of Fe3O4: 0.004-0.005mm

Die tooling design and making in house

Ultrasonic clearing and auto de-burring

Material Available and Chemical Composition:

P/M Copper and Copper Alloys

P/M Iron and Carbon Steel

Iron and Carbon Steel

Iron-Copper and Copper Steel

Iron-Nickel and Nickel Steel

Low Alloy Steel

Commix Low Alloy Steel

Sinter Hardened Steel

Diffusion Alloyed Steel

Copper Infiltrated Iron and steel

The sintered part has the following major advantages:

(A) High precision due to mold- Based production.

(B) Low price due to its inherent feature of automation for mass production

Materials of PTFE disc:

1. PTFE+BRONZE

2. PTFE+CARBON FIBER

3. PTFE+GLASS FIBER

4. OTHER FILLERS or other material according to customer’s demand

Applications:

In car or motorbike front or rear shock absorbers

Competitive Advantage:

1. Consistency in size.

2. Infrared ray detect the out diameter in automatic banding machines

3. Produce PTFE disc by Xia Yi, can control the quality itself.

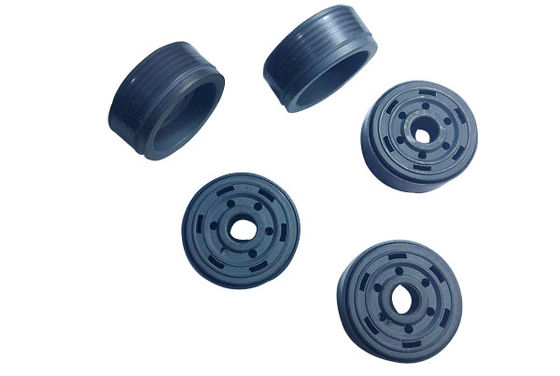

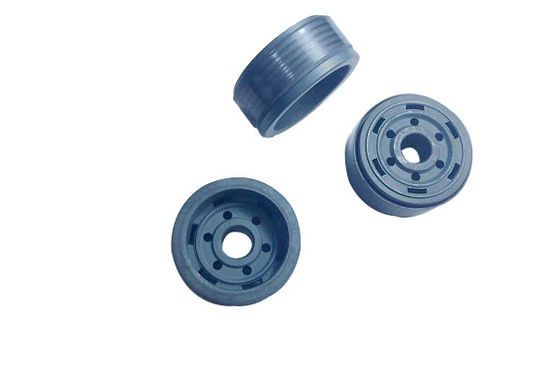

Picture show:
