| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | SF-2 |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Products packed by plastic bag, each bag contain 500pcs or 5kg Max |
| Delivery Time: | Within 20-25days after order confirmation |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50,000pcs per month |
| Product Name: | BUSHING | Inner Layer: | PTFE |
|---|---|---|---|
| Application: | Hydraulic Gear Pump | Type: | Sleeve |
| Coefficient Of Linear Expansion: | 12*10 -6/K | Load Capacity P (Dry): | 250N/mm2 (Static Load) |
| PV Value Limit: | 50N/mm2 (Oil Lubrication) | Material Of Bands: | Bronze Steel |
| High Light: | oilless bushing,sintered bronze bush |
||

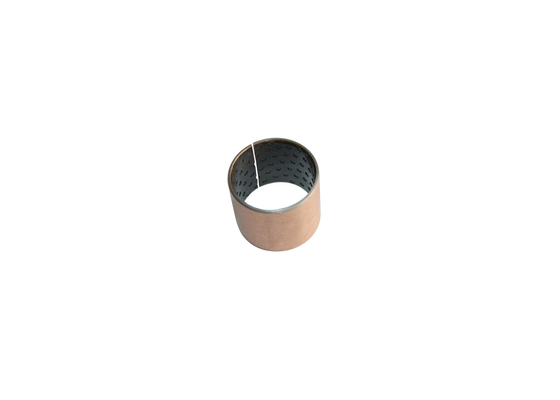

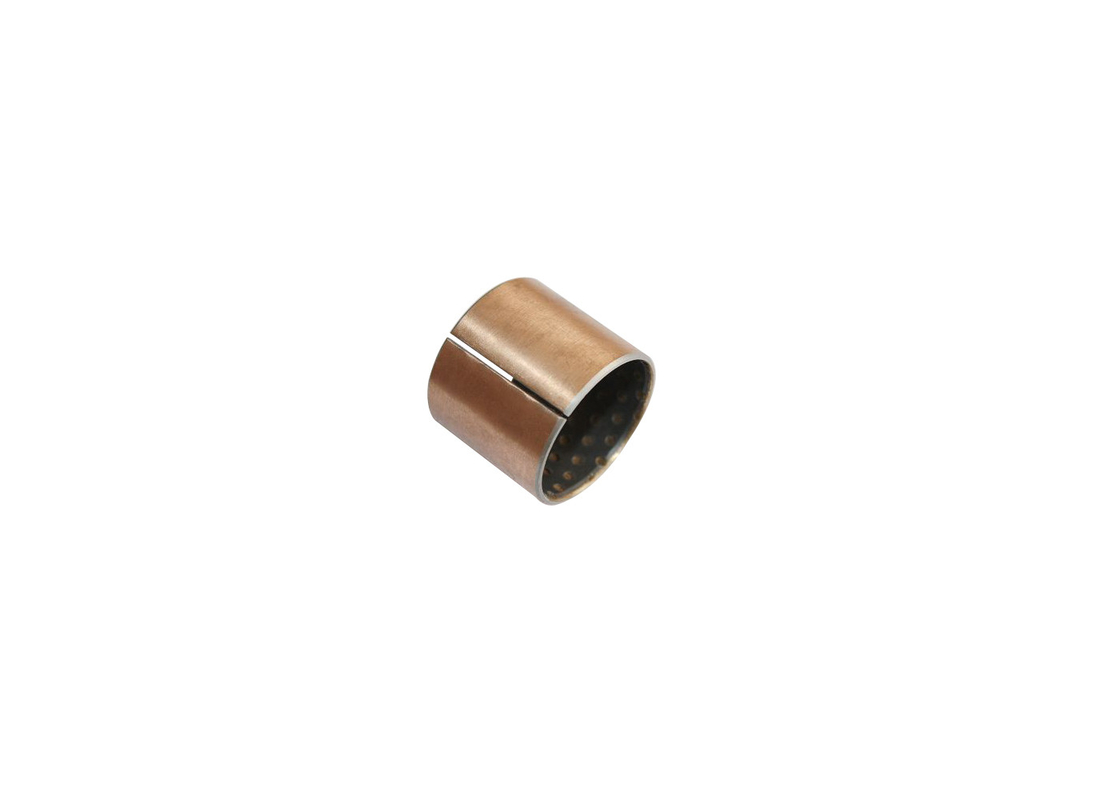

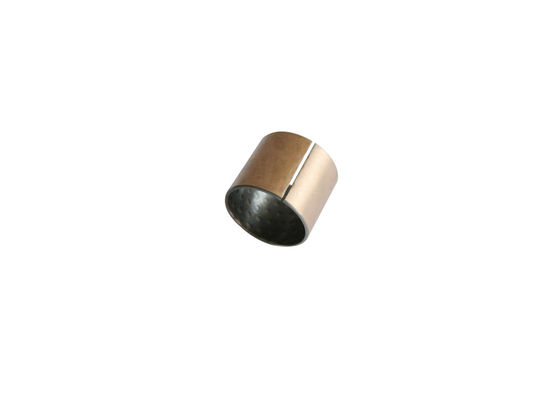

Self-lubrication PTFE sliding layer DU tractor bushing with thermal Conductivity 40W/mk
Specifications:
|
Temperature |
-195 to +280 [ °C ] |
|
Max. dry running Pv (Short-term operation) |
3.6N/mm2.m/s |
|
Max. dry running Pv (Continuous operation) |
1.8N/mm2.m/s |
|
Max. speed (dry running) |
2m/s |
|
Max. speed (Hydrodynamic operation) |
>2m/s |
Description:
1, Good load capacity and anti-wear.
2. Work long time without oil.
3. Low friction index.
Flange Bearings:
|
Min. ID |
Min. OD |
Max. ID |
Max. OD |
Min. FD |
Max. FD |
Max. Length |
|
6mm |
8mm |
40mm |
44mm |
12mm |
53mm |
40mm |
|
40mm |
46mm |
95mm |
105mm |
60mm |
144mm |
127mm |
|
25mm |
28mm |
300mm |
305mm |
35mm |
340mm |
90mm |
|
25mm |
28mm |
300mm |
305mm |
35mm |
340mm |
90mm |
|
10mm |
14mm |
120mm |
140mm |
22mm |
170mm |
100mm |
|
6mm |
12mm |
50mm |
60mm |
14mm |
70mm |
70mm |
|
6mm |
12mm |
300mm |
320mm |
35mm |
340mm |
130mm |
I.D. = inner diameter
O.D. = Outer diameter
F.D. = Flange diameter
Advantage:
1 PTFE / Pb mixture 0.01-0.03mm, provides an excellent initial transfer film
2 sintered bronze powder 0.20-0.35mm, provides Max thermal conductivity away from the bearing
surface, also serves as a reservoir for the PTFE- lead mixture.
3 Low carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
4 copper / Tin plating 0.002mm, provides good corrosion resistance.
Packaging Detail: Products packed by plastic bag, each bag contain 500pcs or 5kg Max, packed Cartons
max 20kgs each. Delivered by Wooden package or Iron cage / Pallet as requested, Standard Size
800x800x1200; Max G.W. 800kgs
Delivery Detail: Within 10-15days after order confirmation
Technical data
|
Performance index |
data |
|
|
Max load capacity |
Static load |
250N/mm2 |
|
Dynamic load |
140N/mm2 |
|
|
Max sliding speed |
Dry friction |
2.5m/s |
|
Oil lubrication |
5.0m/s |
|
|
Max PV value limit |
Dry friction |
3.6N/mm2 m/s |
|
Oil lubrication |
50N/mm2 m/s |
|
|
Friction coefficient |
Dry friction |
0.08-0.20 |
|
Oil lubrication |
0.02-0.07 |
|
|
Working temperature |
-195℃~280℃ |
|
|
Thermal conductivity |
42W/mk |
|
|
Coefficient of thermal expansion |
11*10-6/k |
|
Applications:
Stainless steel bushing is widely used in strong acid and alkali situation, such as chemical industry,
pumps and valves.
Lead free bearing is widely used in food machine, pharmaceutical machine
Competitive Advantage:
|
1. A complete set of testing equipment |
|
2. Rich experience in bushing production |
|
3. Good outsource factory |
|
4. Have an audit for material supplier every year |
Picture Show
