Bronze steel DU 8050 Dry Oilless bushing Bearing , Pb Free PTFE Bushing

Bronze steel DU 8050 Dry Oilless bushing Bearing , Pb Free PTFE Bushing
Bronze steel DU 8050 Dry Oilless bushing Bearing , Pb Free PTFE Bushing Bronze steel DU 8050 Dry Oilless bushing Bearing , Pb Free PTFE Bushing Bronze steel DU 8050 Dry Oilless bushing Bearing , Pb Free PTFE Bushing

Large Image :  Bronze steel DU 8050 Dry Oilless bushing Bearing , Pb Free PTFE Bushing

Product Details:

Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: Oilless bushing

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: Packed in carton firstly and then reinforced with wooden case for outer packing
Delivery Time: 15~20 days after receiving the deposit
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs per month
Detailed Product Description
Product Name: Bushing Material Of Bands: Bronze Steel
Application: Car Shock Absorber Alloy Material: CuPb24Sn
Hardness Of Alloy: 40-60HB Max Line Speed: 10m/s
Grease Lubrication: 2.8N/mm2•m/s Dynamic Load Max: 130N/mm2
High Light:

self lubricating bearing

,

oilless bearings





Machining Of Sleeve Du Bushing with rust-proof oil plated used in gear pump





Specifications:



SF-1(du) oilless bearing bushing (PTFE Composite)



SF-2 (dx) slide bearing bushing (POM Composite)



FB090 (FB090G) bronze bushing



JDB, JFB solid graphite lubricating bushing



FU sintered bronze or iron bushing



FZ POM/Al/Cu ball cage retainer



DU bushing Bearing



Full range of size and customized



High quality OEM manufacturer with much experience





Description:



Cylindrical bushes, flange bushes, thrust washers and strips. non-standard parts.



STEEL PLATE SELF-LUBRICATING BUSHING (WITHOUT PB)



It's made of high quality low-carbon steel plate, sintered porous bronze as its interlayer and the



compound of PTFE material and Pb as its surface. As it is no lead, which makes the bearing lubricating



condition cleaner and in accordance with environmental request. It's based on bronze alloy of a particular



formulation with high density with sintered bronze layer as its interlayer, with the compound of mostly



PTFE and other factors. As it is no lead, which makes the bearing lubricating condition cleaner, and in



accordance with environmental request.



Specifications



1, Reliable quality & Reasonable price



2, Soon of delivery time



3, Professional factory in china



4, wide range production



1. PTFE / Fibre mixture thickness 0.01 ~ 0.03 MM, provides an excellent initial transfer film, which



effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.



2. Sintered bronze powder thickness 0.20-0.35MM, provides Max. thermal conductivity away from the



bearing surface, also serves as a reservoir for the PTFE- Fibre mixture.



3. Low carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.



4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance



Typical application:



This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other



chemical environments when no oil can be introduced. Now is widely be used in automotive products line,



water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy



industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines..





Applications:



Car or motorbike shock absorber





Equipment Advantage:



Bronze-steel sintering line



Automatic tooling line



Grinding machine



Rolling mill machine



CNC machine



Punching machine



Gage lathe machine



Hydraulic machine





Picture Show

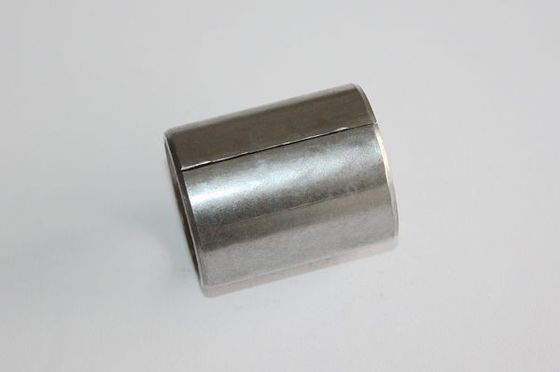

Bronze steel DU 8050 Dry Oilless bushing Bearing , Pb Free PTFE Bushing 0



Bronze steel DU 8050 Dry Oilless bushing Bearing , Pb Free PTFE Bushing 1
