Carbon fiber skirting / straight banded Piston , shock absorber reconditioning
  • name
  • name
  • name

Carbon fiber skirting / straight banded Piston , shock absorber reconditioning

MOQ: 2,000pcs
Price: negotiation
Standard Packaging: Packed in carton firstly and then reinforced with wooden case for outer packing
Delivery Period: ten working days after payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 30,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
Φ30mm
Product Name:
Banded Piston
Density Of Sinter Piston:
More Than 6.5g/cm3
Banding Method:
Skirting Or Straight
Application:
Car Shock Absorber
Producting Machine:
Automatic Banding Machine
Outer Diameter:
30mm
Highlight:

shock absorber piston

,

shock absorber reconditioning

Product Description





Pass blow-off testing carbon fiber filled PTFE banded Shock Absorber Piston





Specifications:



Various testing machine

Density balance

Shore hardness

Projector

Drawing force testing machine

Fatigue testing machine

Abrasion testing machine

Tensile testing machine

Oil immersion testing machine

Friction testing machine





Description:



Pass blow-off testing filled PTFE banded Shock Absorber Piston



XiaYi company is specialized in producing shock absorber pistons from automobiles and motorcycles.



With development, we have reached annual capacity 2,000,000pcs. We have built good relationship with



some big shock absorber manufacturers at home and abroad.



SPEC: D30XD8X12



•      The pistons are exported to Japan



•      4 small holes design



•      All the holes are inclined



•      Net weight is 30.45g



•      Pistons can do performance test according to the customer's demand.





Here is the physical property of our products:



Tensile strength       ≥23N/mm2



Carrying capacity    ≥15N/mm3



Working temperature    -80°C to 260°C



Friction coefficient  ≤0.16μ





We have different kinds of testing machines such as abrasion test, density test, friction test, blow-off test,



hardness test, tension strength test and so on. So you can highly trust our advanced material.



As a modern company orientated towards organic growth it is in our interest that there is a team-spirit,



that everyone is reliable and that we are all following the same targets. Our highly motivated and



competent team can be depended upon to pursue the utmost aim of the company which is "customer



satisfaction" at a consistently high quality.





Applications:



Car or motorbike shock absorbers





Competitive Advantage:



XIAYI is a professional company which produces different size and design shock absorber pistons.



XIAYI has a complete set of testing equipment which can control the quality for the material.





Picture show:

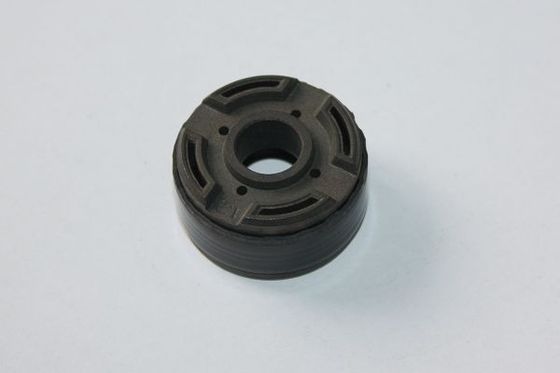

Carbon fiber skirting / straight banded Piston , shock absorber reconditioning 0



Carbon fiber skirting / straight banded Piston , shock absorber reconditioning 1
