Place of Origin: | China |
Brand Name: | XIAYI |
Certification: | ISO9001:2008 |
Model Number: | Φ25mm |
Minimum Order Quantity: | 2,000pcs |
---|---|
Price: | negotiation |
Packaging Details: | According to customer’s demand |
Delivery Time: | One week after payment |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 50,000 pcs per month |
Product Name: | Banded Piston | Filler Of Bands: | Carbon Fiber |
---|---|---|---|
Material Of Bands: | PTFE | Color: | Black |
Application: | Front Car Shocks | Density Of Bands: | 2.06-2.19 G/cm3 |
Outer Diameter: | 25mm | Banding Temp.: | 300 ℃ |
Highlight: | shock absorber piston,shock absorber reconditioning |
Wear and corrosion resistance Shock absorber Pistons with PTFE banding material
Specifications:
Physical performance for shock piston |
tensile strength |
More than 18MPa |
elongation @ break |
More than 160% |
|
shore hardness (bands) |
57 - 61 |
|
density |
2.06 – 2.19 g/cm3 |
|
wear |
Less than 50mg |
|
friction coefficient |
Less than 0.2 |
|
hardness (sinter piston) |
HRB60-80 |
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
Steam treatment |
||
OD tested by digital air gauge |
Description:
Wear and corrosion resistance HYUNDAI, NISSAN, KIA, FORD Shock absorber Pistons with PTFE
banding material
XiaYi is specializing in producing damper pistons. Our products are not only selling well in many cities in
China, but also exported to many overseas countries and regions, such as Africa, South America,
Southeast Asia and the Middle East.
Our enterprise is trying our best to provide higher quality products at lower price, and bring you
satisfactory customer service. We always optimize our products to meet different requirements of
customers. We also provide OEM services. We do business in good faith and enjoy a good reputation for
our good after-sales service.
SPEC: D25XD8X13
• 6 holes design
• The pistons are sold to primary market
• Can do slide resistance test according to the customer's demand
• Piston should slide down uniformity both in positive and contrary direction, no damping stagnation
• Test velocity is 3mm/min, Static strength damage: 11.27KN
• Net weight is 19.60g
PTFE material has the following characteristic
(1)Physical properties: smooth surface, waxy, ivory and opacity, average density is 2.2
(2)Mechanical properties: tensile strength is 20.0~30.0MPa, elongation at break is 300%~400%, modulus
of elasticity is 400 MPA, surface hardness is 55-70HS, friction coefficient between PTFE is 0.1-0.2
(3)Chemical properties: can resist most strong corrosive material, no solvent can’t dissolve, it under
300℃, strong weather ability, can store more than ten years
Advantages:
1. Wear and corrosion resistance
2. Efficiency steaming treatment
3. Reduces friction and ensure smooth rod reaction
4. PTFE banded piston
5. It is equipped with piston rings to provide a good seal between the cylinder wall and piston
6. Increased seal durability
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
XIAYI is a professional company which produces different size and design for shock absorber pistons.
XIAYI has a complete set of testing equipment which can control the quality for the material.

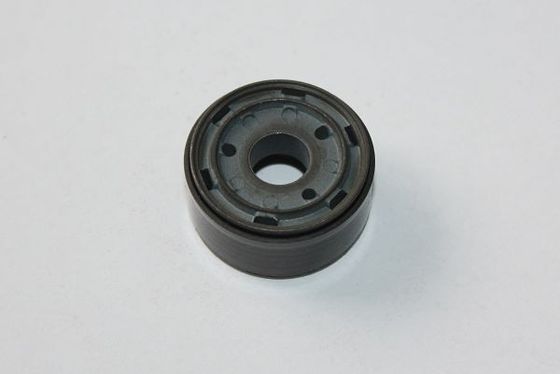

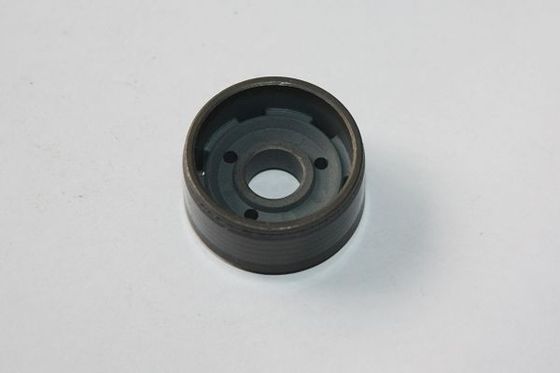

Picture show:
