| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Customized piston |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in plastic box one by one, then in carton with standard export package |
| Delivery Time: | 30 working days for new samples |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50,000pcs per month |
| Product Name: | Piston | Material: | Aluminum / Zinc Alloy |
|---|---|---|---|
| Press: | 100T | Application: | Shock Absorber |
| Molds Time: | 25 Days | Plating: | No Steam |
| Net Weight: | 18.36g | Size: | 27mm |
| High Light: | banded piston,shock absorber parts |
||

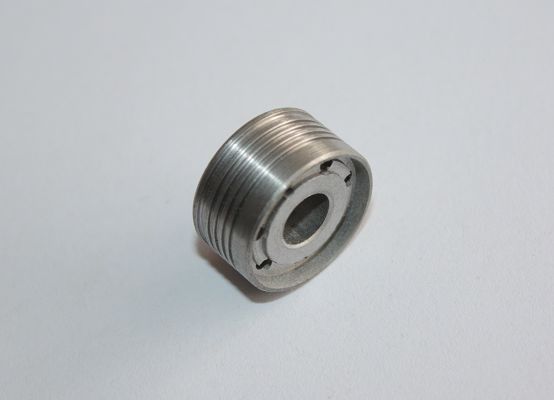

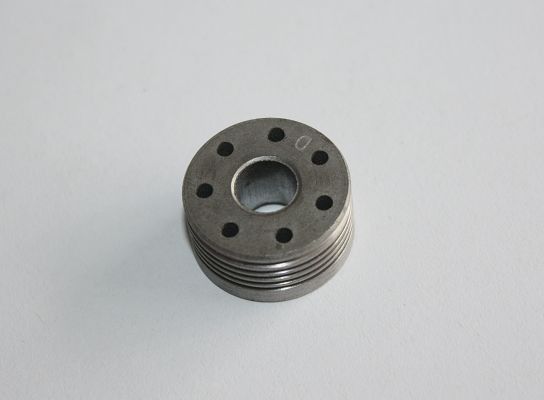

20mm Density 6.4g / cm3 Powder Metallurgy Pistons used in motorcycle front shocks
Processing:
mixing powder→forming→sintering→sizing→after treatment→steam treatment→oil impregnant
Features:
in-house tooling making:EDM, wire cutting machine
custom metallurgical properties
design and sale all types of pistons
wear and corrosion resistance
Specifications:
|
Material |
iron powder metallurgy |
|
Density |
6.2-6.8g/cm3 |
|
Hardness |
HRB60-80 |
|
Equipment |
auto mechanical Press, hydraulic press, automatic skirting machine |
|
Sintering |
Six sinter furnaces, including one harden Sinter Furnace |
|
Steam treatment |
2 hours high temp steam holding time, thickness of Fe3O4: 0.004-0.005mm |
Description:
Our company produces different kinds of powder metallurgy products. These powder metallurgy products
including sintered rod guides, sinter pistons & sinter foot valves, the parts are delivered in a fully finished
condition and ready to be assembled along with other shock absorber components.
Sintered piston
Size: D26.8XD7.2X15
|
properties |
data |
|
Crushing strength (KN) |
≥7 |
|
Density (g/cm3) |
≥6.4 |
|
Hardness (HRB) |
55-65 |
Material actual component
Fe: 97.58%
C: 0.62%
Cu: 1.7%
Others: 0.1%
Material: MPIF FC-0205 or FC-0208 from GKN
No steam treatment
Die tooling design and making in house
Ultrasonic clearing and auto de-burring
The sintered part has the following major advantages:
(A) High precision due to mold- Based production.
(B) Low price due to its inherent feature of automation for mass production
(C) Flexibility of material composition due to wide variety of powder formula on Fe- Cu- Ni alloy
Applications:
1. Automotive Part
2. Motorcycle Part
3. Pump Parts
4. Locomotive Parts
5. Machinery Parts
6. Tool Parts
Competitive Advantage:
1. Good service
2. Reasonable price
3. Strict quality control system
4. Punctual lead time
5. ROHS compliant
Picture show:
