Hoganas Powder Produced PTFE Shock Banded Piston , Shock Absorber Part ISO9001:2008

MOQ:	5,000pcs
Price:	negotiation
Standard Packaging:	Pack one by one in plastic box
Delivery Period:	10 working days after received your payment
Payment Method:	T/T, Western Union
Supply Capacity:	1,000,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XIAYI

Certification

ISO9001:2008

Model Number

Φ31mm

Product Name:

Shock Pistons

Material Of Sinter Parts:

Hoganas

Material Of Bands:

Filled PTFE

Color:

Black

Application:

Car Shocks

Density Of Bands:

2.06-2.19 G/cm3

Outer Diameter:

31.02mm

Highest Temp.:

375 ℃

Highlight:

shock absorber piston

shock absorber reconditioning

Product Description

Hoganas powder produced PTFE Shock Piston with low mass wearing quantity

Specifications:

Here is the physical properties of our products
Tensile strength	≥23N/mm²
Carrying capacity	≥15N/mm³
Working temperature	-80°C to 260°C
Friction coefficient(dry)	≤0.16
Friction coefficient(oil)	≤0.05

packing detail:

1.put piston one by one into environmental plastic box

2.put 5 plastic boxes into standard carton

Description:

No scuffing, Custom Shock absorber Pistons can stand fatigue test and blow-off test

SPEC: D31XD8X12

• Big shock absorber piston

• Conventional design

• With PTFE banded on OD

• We can produce according to the customer's drawing

• Middle part (sinter part), we can use the material as the customer's demand

• Carbon content is 0.1%, copper content is 3% or other choice

Advantages:

1. Wear and corrosion resistance

2. Efficiency steaming treatment

3. Reduces friction and ensure smooth rod reaction

4. PTFE banded piston

5. It is equipped with piston rings to provide a good seal between the cylinder wall and piston

6. Increased seal durability

We own the following testing equipment to assure the quality and properties of the mixed material and

banding effectiveness.

1. Tensile strength testing machine

2. Abrasion & friction coefficient testing machine

3. Shore durometer

4. Rockwell hardness tester

5. Density balance

6. Fatigue testing machine

7. Blow-off & friction testing machine

Main property for our shock absorber spare parts:

1. Density of powder metallurgy piston: not less than 6.3g/cm3

2. Density of powder metallurgy valve seat: no less than 6.5g/cm3

3. Density of powder metallurgy rod guide: no less than 6.6g/cm3

4. Efficiency steaming treatment and surface treatment

Applications:

In car or motorbike front or rear shock absorbers

Competitive Advantage:

1. Consistency in size.

2. Infrared ray detect the out diameter in automatic banding machines

3. Produce PTFE disc by Xia Yi, can control the quality itself.

Picture show:

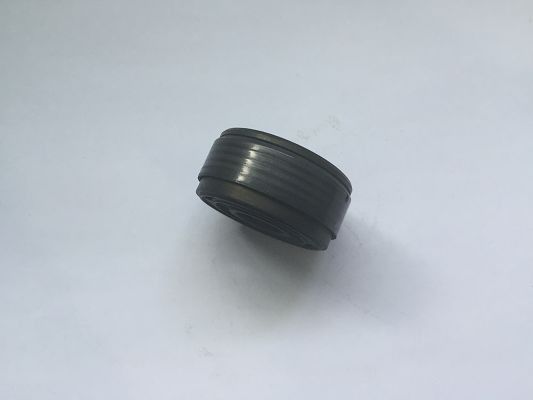

Hoganas Powder Produced PTFE Shock Banded Piston , Shock Absorber Part ISO9001:2008 0

Hoganas Powder Produced PTFE Shock Banded Piston , Shock Absorber Part ISO9001:2008 1
