Back And Front Tinning 0.5-2.5μM Du Bushing
  • name
  • name
  • name
  • name

Back And Front Tinning 0.5-2.5μM Du Bushing

MOQ: 1,020pcs
Price: negotiation
Standard Packaging: 1. Print mark logo, Anti-rust oil 2. Plastic films, Plastic bag or paper box 3. Carton + Pallet
Delivery Period: Ten working days depend on order quantity
Payment Method: T/T, Western Union, L/C
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
IATF16949:2016
Model Number
XYJD-B0826-1
Product Name:
Head Bush - CP
Application:
Industrial Equipment
Concentricity:
0.05mm
Temperture Limit:
-195~270
Friction Coefficient:
0.05~0.25µ
Material:
M403 DP4 ISO 3547
Static Load:
250N/mm2
Coating:
Bronze + PTFE + CAF2 + Fillers
Highlight:

2.5μm du bushing

,

0.5μm du bushing

,

250n/mm2 du bushing

Product Description

8 x 6 x 24.5 back and front tinning 0.5 ~ 2.5 μm du bushing with bronze PTFE CAF2 coating


Specifications:




Full lines of slide bushings

SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2 (dx) slide bearing bushing (POM Composite)

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer

Ball Transfer Unit



Part name

du bushing

Material

Steel backing + Sintered bronze + PTFE

Appearance

Tin or Copper plated


Description:

Boundary Lubrication Bushing is composed of three layers: steel backing, sintered bronze layer and

modified POM layer. It fits well for low speed, high load, normally temperature occasions with rotational,

oscillating or frequent stop-start motion. It can work long time under boundary lubrication circumstances, if

oil or grease is add, its working life can be prolonged further.

Technical data

Max.Load:Static:250N/mm²,Dynamic:140N/mm²

Max.Speed:Dry:2m/s,Lubrication:>2m/s

Max. PV (Dry):Short-tem:3.6N/mm²*m/s, Continuous:1.8N/mm²*m/s

Temp.:-195~+280

Friction coefficient: 0.03~0.20

Thermal conductivity: 42W (m*K)-1

Coefficient of thermal expansion: 11*10-6*K-1

1. Recommended for applications involving intermittent operation or boundary lubrication...

2. Automotive: suspension joints, kingpin assemblies and stub axles of tucks, automobile driving joint

hinges, steering and other linkages, articulation joints, rear chassis hinges, fairleader rollers

3. Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in

presses

4. Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front

axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters

5. Especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.

Applications:

Printing presses, textile machines, hydraulic carrier, tobacco machine, medical machinery, micro-motor,

automobiles and motorcycles

Competitive Advantage:

Our services

Sample order is available

Small order is acceptable

Customized is available as per drawing or sample

After-sale service

Goods quality following

Accept feedback and solve the problem

Regular return visit


Picture Show

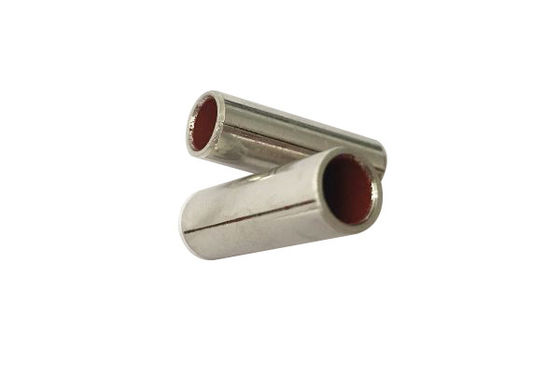

Back And Front Tinning 0.5-2.5μM Du Bushing 0

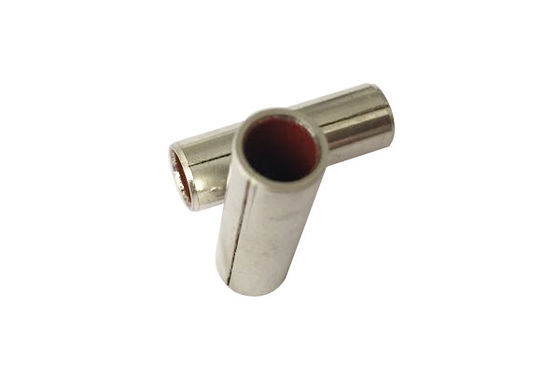

Back And Front Tinning 0.5-2.5μM Du Bushing 1
