Graphite carbon filled high chemical stability PTFE Band produced by punch machine

Graphite carbon filled high chemical stability PTFE Band produced by punch machine

  • Graphite carbon filled high chemical stability PTFE Band produced by punch machine
  • Graphite carbon filled high chemical stability PTFE Band produced by punch machine
  • Graphite carbon filled high chemical stability PTFE Band produced by punch machine
Graphite carbon filled high chemical stability PTFE Band produced by punch machine
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: Customized PTFE bands
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs
Price: negotiation
Packaging Details: plastic PP bag inside and carton outside
Delivery Time: two weeks for new samples
Payment Terms: T/T, Western Union, L/C
Supply Ability: 150,000pcs per month
Contact Now
Detailed Product Description
Product Name: PTFE Guide Strip Material: PTFE + Bronze Compound
Application: Hydraulic Cylinder Style: Sealing Strip
Size: Customized Production: Punch Machine
Yield Strength: 23MPA Coefficient Of Friction: 0.05-0.10
Highlight:

PTFE Band

,

piston band

Graphite carbon filled high chemical stability PTFE Band produced by punch machine



Specifications:



1. Unusually high wear resistance.



2. High resistance against extrusion.



3. Perfect sealing performance.



4. Easy installation.



5. Good temperature tolerance.



6. Double lips prevent dust pollution.



1. Filled PTFE


2. ISO 9001 certified


3. Pressure: 6.4Mpa


4. Used for static sealing for medium of high clean





Description:



High temperature proof



Strong corrosion proof and clean



High degree of chemical stability



Our company has ISO9001 certificate, we will serve you with the best quality and good price. Here is the



property information about pure PTFE bands as follow.



MATERIALS:

PTFE powder, PTEE sheet

TEMPERATURE:

-150-250°c

PRESSURE:

6.4Mpa

MAIN USES:

Static sealing for medium of high clean degree

SPECIFICATIONS:

DN10-600mm





Filled PTFE Product



1. Carbon, graphite and glass fiber can be filled



2. Size can be made based on customers' requirements



Features:



PTFE has excellent all-round properties performing well at both high and low temperatures, being



corrosion-resistant, non-stick, self-lubricating and insulating. In addition, it has a low friction coefficient.



Specifications:



All sizes will be produced according to customers' requirement



Different materials can be added, such as glass fiber, graphite, carbon and son on



Improve compression strength, thermal conductivity and abrasion resistance.



Advantages:

It has a low coefficient of friction and lubrication is not always necessary.

PTFE can work together with other materials like fiberglass or copper to get a better mechanical property.

When PTFE is expanded properly, the fiber changes from hair-like structure to a web-like structure and



become much more stronger while it is much lighter.





Applications:



It is widely used as flange sealing to joint where strong acid or alkaline or other corrosive.





Competitive Advantage:



1. We take care of the quality in all respects. Accurate tolerance as specified and no foreign spot



2. We use the best quality virgin power/resin.



3. Smooth edges of bands, thickness is accurate from all sides and throughout the bands



4. We also take care of the quality of bands from all angles like size, thickness, appearance.





pictures show

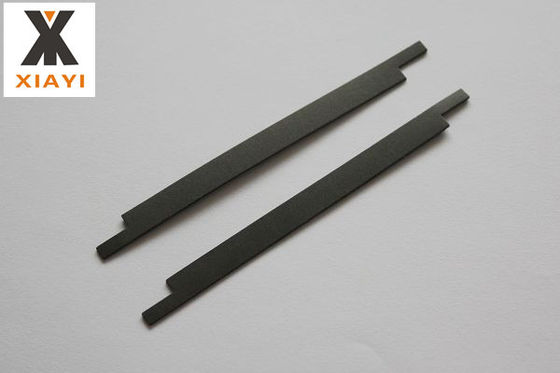

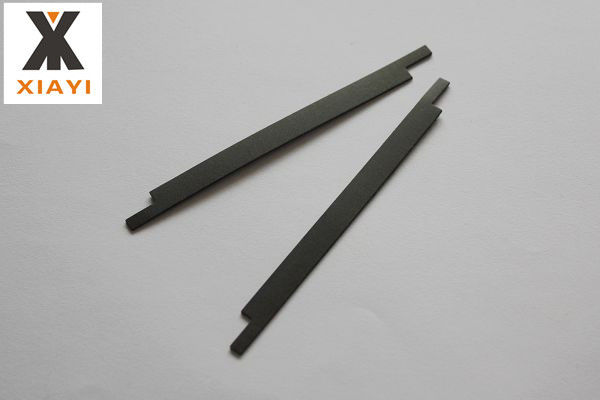

Graphite carbon filled high chemical stability PTFE Band produced by punch machine 0

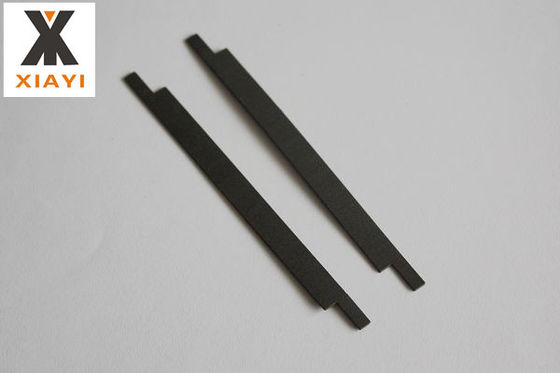

Graphite carbon filled high chemical stability PTFE Band produced by punch machine 1
