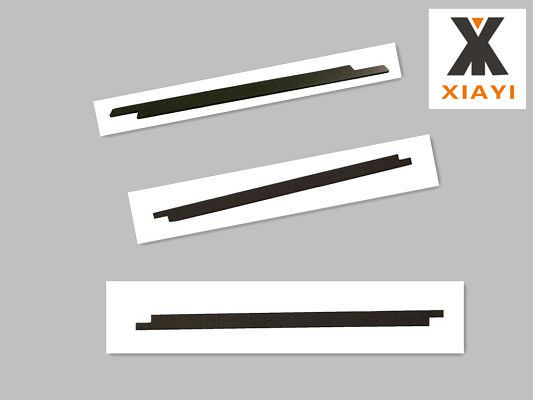

Soft PTFE guide strip / pistons shock absorber car parts wear resistance
Key Attributes
| Product Name: | PTFE Bands | Material: | PTFE + Bronze Compound |
| Application: | Shock Absorber | Compression Ratio: | 16.7% |
| Length: | 116mm | Production: | Punch Machine |
| Working Pressure: | Less Than 63MPA | Working Temp.: | -180~+250℃ |
| High Light: | PTFE Band,piston band |
Soft PTFE guide strip / pistons shock absorber car parts wear resistance
Specifications:
properties | unit | result |
Apparent density | g/cm3 | 2.10-2.30 |
Tensile strength(min) | MPa | 15.0 |
Ultimate elongation(min) | % | 150 |
Working Temp. | ℃ | -180~260 |
Melting point | ℃ | 327 |
Produce Max Temp. | ℃ | 385 |
Size | mm | 20mm~400mm |
Description:
Carbon fiber filled PTFE piston ring
Material: PTFE filled with carbon fiber
Size: 116*8*1
Style: PTFE piston ring
Shape: can be customized
Excellent performance:
High and low temperature-resistant, corrosion-resistant, high-lubricating, high insulation
Filled PTFE Product
All sizes will be produced according to customers' requirement
Different materials can be added, such as glass fiber, graphite and carbon
Improved compression strength, thermal conductivity and abrasion resistance
Our PTFE range includes:
Gaskets/Piston Seals/Rod Seals/Wipers/Bearing Strips/Spring Activated Seals/Rod, Back up Rings &
Strips/Ropes
Features:
PTFE has excellent all-round properties performing well at both high and low temperatures, being
corrosion-resistant, non-stick, self-lubricating and insulating. In addition, it has a low friction coefficient.
Specifications:
All sizes will be produced according to customers' requirement
Different materials can be added, such as glass fiber, graphite, carbon and son on
Improve compression strength, thermal conductivity and abrasion resistance.
Applications:
It is used for seal of engine crankshaft, detection machine, gear-box and oil resistant seal for other
machine. It can be also used to seal water, alkali, acid, corrosion according to the client's special
requirement.
Competitive Advantage:
Professional manufacturer for many years
Quality control and cost control
Short delivery
Factory price
