PTFE Guide Ring Sintered OEM Shock Absorber Guide

PTFE Guide Ring Sintered OEM Shock Absorber Guide

  • PTFE Guide Ring Sintered OEM Shock Absorber Guide
  • PTFE Guide Ring Sintered OEM Shock Absorber Guide
  • PTFE Guide Ring Sintered OEM Shock Absorber Guide
  • PTFE Guide Ring Sintered OEM Shock Absorber Guide
PTFE Guide Ring Sintered OEM Shock Absorber Guide
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: XYJD-PM0515Q
Payment & Shipping Terms:
Minimum Order Quantity: 502pcs
Price: negotiation
Packaging Details: Standard exporting package
Delivery Time: 25 working days for new samples
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Product Name: Guider Material: Alloy Powder
Press: 80 - 150T Service: OEM
Application: Shock Absorber Net Weight: 202g
Hardness: HRB65-90 Molds Time: 25 Days
High Light:

Sintered Shock Absorber Guide


Shock Absorber Sintered Guide


Shock Absorber Guide OEM


PTFE guide ring Sintered OEM guider Shock Absorber Parts Lined with bearing


We are specializing in powder metallurgy,oil bearings,structural parts,gears(sprockets) and different parts


used in automobile and motorcycle.our company boasts fulley-automatic shaping mills, more than 60


finishing machines and about 20 professionals.our products spread out all over the the country, and we


supply components to Korea, America and Japan.





Model Number

Rod Guide

Raw Materials

MPIF FC-0205


6.2-6.8 g/cm3



Car Make

All Car Rod Guides


Powder Metallurgy





XIAYI manufactures pistons, valve cases and rod guides which are the main parts of the shock absorber


for 4-wheel and 2-wheel vehicles.


1. Bushing piston ring/PM piston shock absorber parts/sliding bearing


2. Shock absorber parts including bushing, PM piston, rod guide etc.


Product Name


Shock Absorber Rod Guide


Raw Materials: MPIF FC-0205




1. Density from 6.5-6.7 g/cm3


2. Hardness: HRB 60-100


3. Steam treatment: 2H high temp steam holding time, Thickness of Fe3O4: 0.004-0.005mm


4. Full line products for shock absorber, including powder metallurgy piston, rod guide, foot valve, PTFE


band for piston, Du bearing for rod guide.


5. PPAP III is submitted accordingly.


These products find application in automotive, power tool, power transmission and various other






Mixing powder——Forming——Sintering——Sizing——After treatment——Steam treatment——Oil






1. Auto Mechanical Press: 50T, 100T, 140T


2. Hydraulic Press: 100T, 315T, 600T, 800T


3. Six sinter furnaces, including one harden Sinter Furnace


4. Heat treatment: Carbonitriding quenching and high frequency quenching


5. Ultrasonic clearing and auto de-burring


6. In-house tooling making: EDM, wire cutting machine


7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.


Test Ability


1. Carbon sulfur determinator


2. Metallurgic microscope


3. Hydraulic universal material tester


4. Hardness testers


5. Pneumatic measuring instrument


6. Measuring projector


7. Gear testing instrument


8. Electrical profile meter


9. CMM


Competitive Advantage:


1. Well experienced in OEM manufacturing.


2. Many years in the powder metallurgy industry.


3. Professional technology service




1. Automotive Part


2. Motorcycle Part


3. Pump Parts


4. Locomotive Parts


5. Machinery Parts


6. Tool Parts


Packing detail


1. 200pcs per carton


2. Carton size: 36.5*22.5*14.5mm


3. Gross weight: 24.5kg


4. Net weight: 24kg


5. Packing dozens of cartons per pallet


6. 6-7 pallets per container

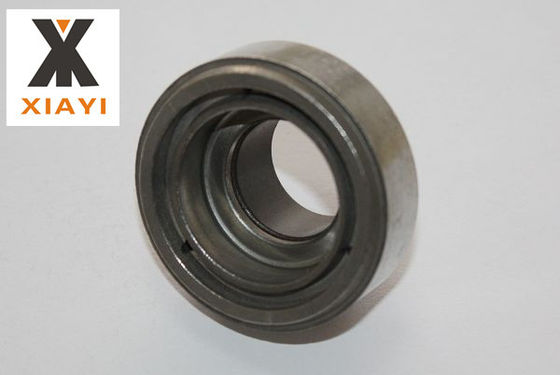

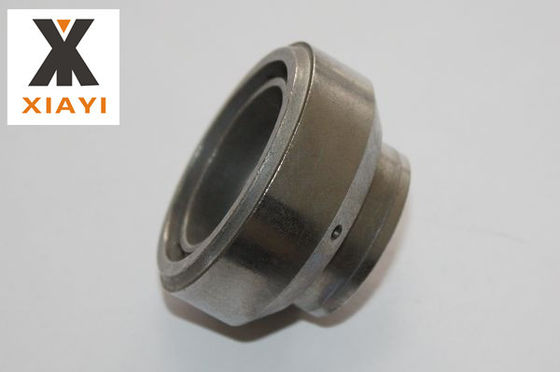

Picture show:


PTFE Guide Ring Sintered OEM Shock Absorber Guide 0
