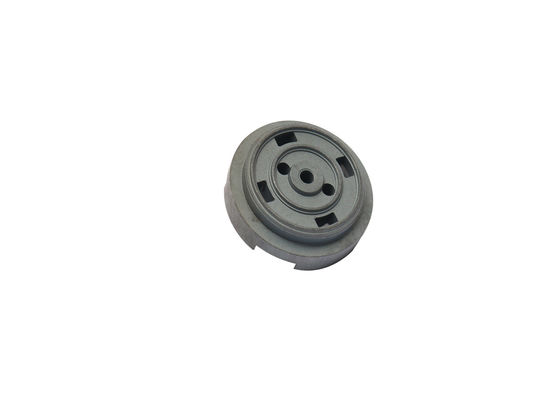

Name: Powdered Metal Parts Shock Base Valve With Steam Treatment
Brand: Ningbo XiaYi Electromechanical Technology Co.,Ltd.
SKU: Φ32mm
Price: 0.18 USD
Availability: InStock

MOQ:	2,000pcs
Price:	negotiation
Standard Packaging:	Standard exporting package
Delivery Period:	One month after technical details are confirmed
Payment Method:	T/T, Western Union
Supply Capacity:	50,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XIAYI

Certification

IATF16949:2016

Model Number

Φ32mm

Product Name:

Bottom Valve

Material:

Iron Based Or Others

Press Machine:

100T - 200T

Key Size:

100% Inspected

Application:

Car Shocks

Plating:

Customized

Sample Time:

One Month

Surface:

Rust-preventive

Highlight:

Shock Base Valve With Steam Treatment

Steam Treatment Shock Base Valve

100T Shock Base Valve

Product Description

Base Valve Foot Valve Powdered Metal Parts With Steam Treatment Applied in Car Shocks

Manufacturability

1. Auto Mechanical Press:50T, 100T, 140T

2. Hydraulic Press:100T, 315T, 600T, 800T

3. Six sinter furnaces, including one harden Sinter Furnace

4. In-house tooling making:EDM, wire cutting machine

Specifications:

Density	6.2-6.8 g/cm3
Hardness	HRB 45-65
Steam treatment	2H high temp steam holding time
Thickness of Fe3O4	0.004-0.005mm

Description:

HRB80-100 Iron-Copper and Copper Steel Sintered Parts for car shock absorbers

Our company produces different kinds of sintered parts. These sintered part include pistons, foot valve,

rod guider, valve base and so on.

Dimension: D32.5XD6X11.5

Material: MPIF FC-0205

Density: Not less than 6.5g/cm3

Net weight is 30.36g

Die tooling design and making in house

Ultrasonic clearing and auto de-burring

No lack of material of valve line

No foreign material and dust on surface

Material Available and Chemical Composition:

P/M Copper and Copper Alloys

P/M Iron and Carbon Steel

Iron and Carbon Steel

Iron-Copper and Copper Steel

Iron-Nickel and Nickel Steel

Low Alloy Steel

Commix Low Alloy Steel

Sinter Hardened Steel

Diffusion Alloyed Steel

Copper Infiltrated Iron and steel

Applications:

Automotive Part

Motorcycle Part

Metal Powder Sintered Parts

Locomotive Parts

Machinery Parts

Tool Parts

Competitive Advantage:

1. High precision

2. 100% quality with competitive price

3. Good abrasion resistance

4. High efficiency

5. Save energy

Picture show:
